  1. Apr 25

    Recently talked about using tiled normal maps: Here's a great lil tutorial on making your own in Blender

    0:59
    Seamlessly tiling normal or displacement maps are great for easily adding details to models. You can create these maps yourself by sculpting on a Plane, using the Tiling feature.
    1 retweet 9 likes
    Undo
  2. Retweeted
    Apr 24

    In any ethical , what I show is up to me only. What you see is up to you only. Community sourced filters are a nice convenience. Tech companies must have absolutely no part in this decision, or the metaverse is fucked -- and arguably not a metaverse.

    2 replies . 11 retweets 42 likes
    Undo
  3. Apr 23

    Original clothing asset was created by (great stuff here!) I sim'd it to my avatar in Marvelous Designer, and retopo'd / UV'd it seperately in Blender

    Show this thread
    Show this thread
    Undo
  4. Apr 23

    for making it all the way down here, here I am gmod dancing in the void

    1 reply . 5 likes
    Show this thread
    Show this thread
    Undo
  5. Apr 23

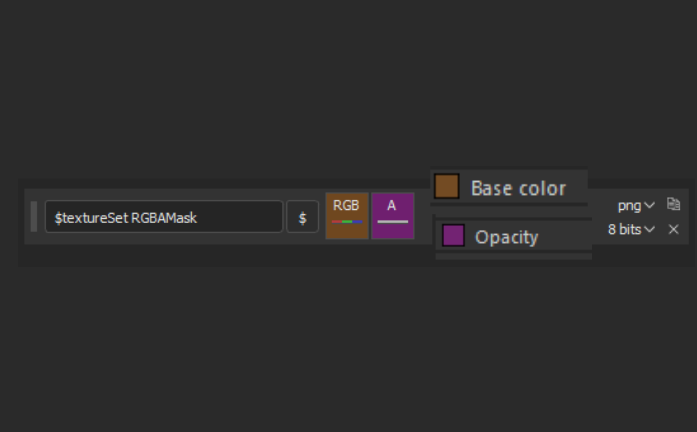

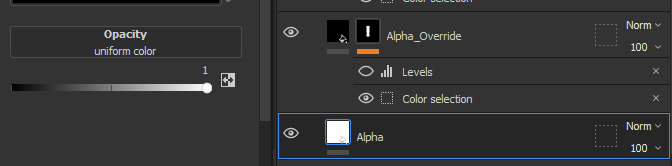

    Final tips: If using alpha as transparency: Use opacity channel in Substance to add Alpha channel Add an opacity only fill @ value 1. Mask / anchor your transparent area *invert the mask* Export with a setup like: - Crank up the normal tiling in shader. Use Blend from Base

    1 reply . 4 likes
    Show this thread
    Show this thread
    Undo
  6. Apr 23

    You can also *texture* (color) per RGB section too - combined with alpha values, hue shifting, you can do some cool stuff: Note that it is masked in the grey and black sections

    1 reply . 1 retweet 9 likes
    Show this thread
    Show this thread
    Undo
  7. Apr 23

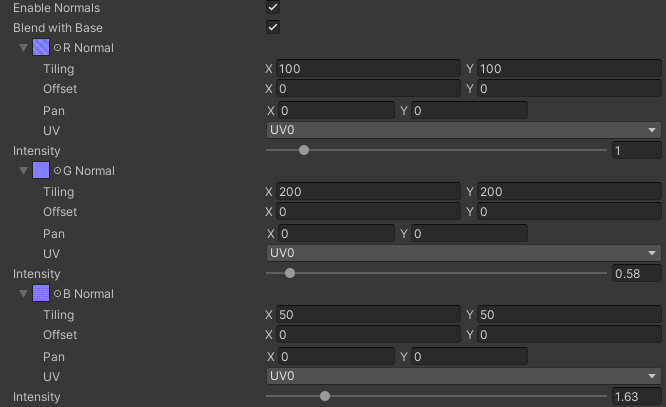

    Back to shader: Can use seamless tiled *normal maps* per RGB area - tiny (128/256px) normal maps, but tiled around 50-100 times in the shader, giving you a higher effective TD. You can combine these with an base nrm map for creases and baked normal details etc: (Blend with Base)

    2 replies . 6 likes
    Show this thread
    Show this thread
    Undo
  8. Apr 23

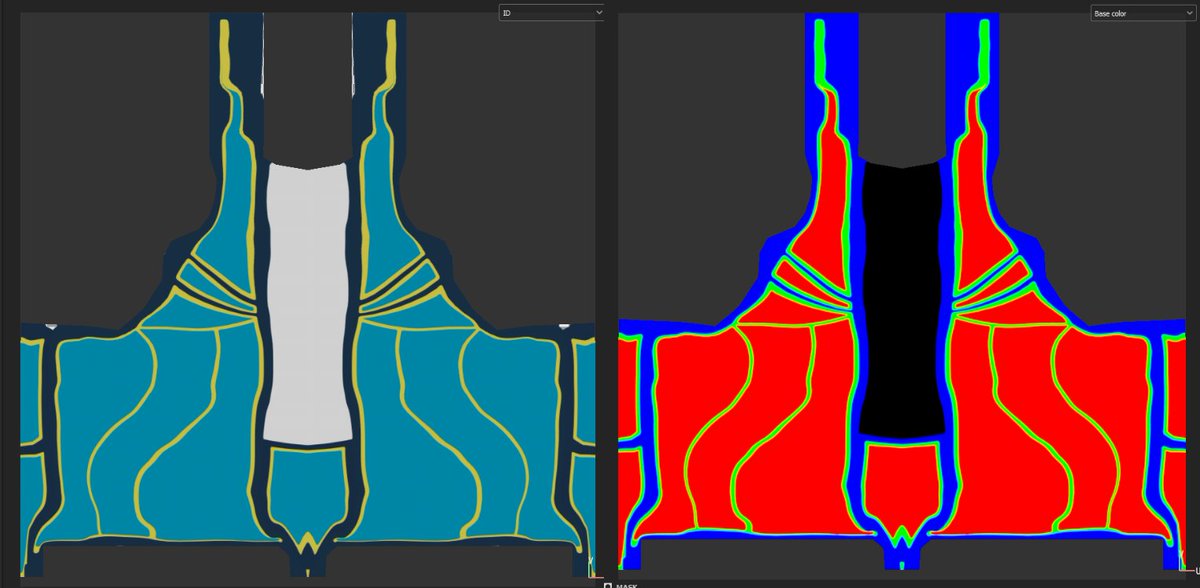

    Hey V, that's cool, but how do I make that mask? In Substance, you can create one from an ID map - Create seperate R / G / B color only layers, Mask with Color Selection and reference the ID map I blur each layer and add a Contrast filter - helps with compression later

    1 reply . 5 likes
    Show this thread
    Show this thread
    Undo
  9. Apr 23

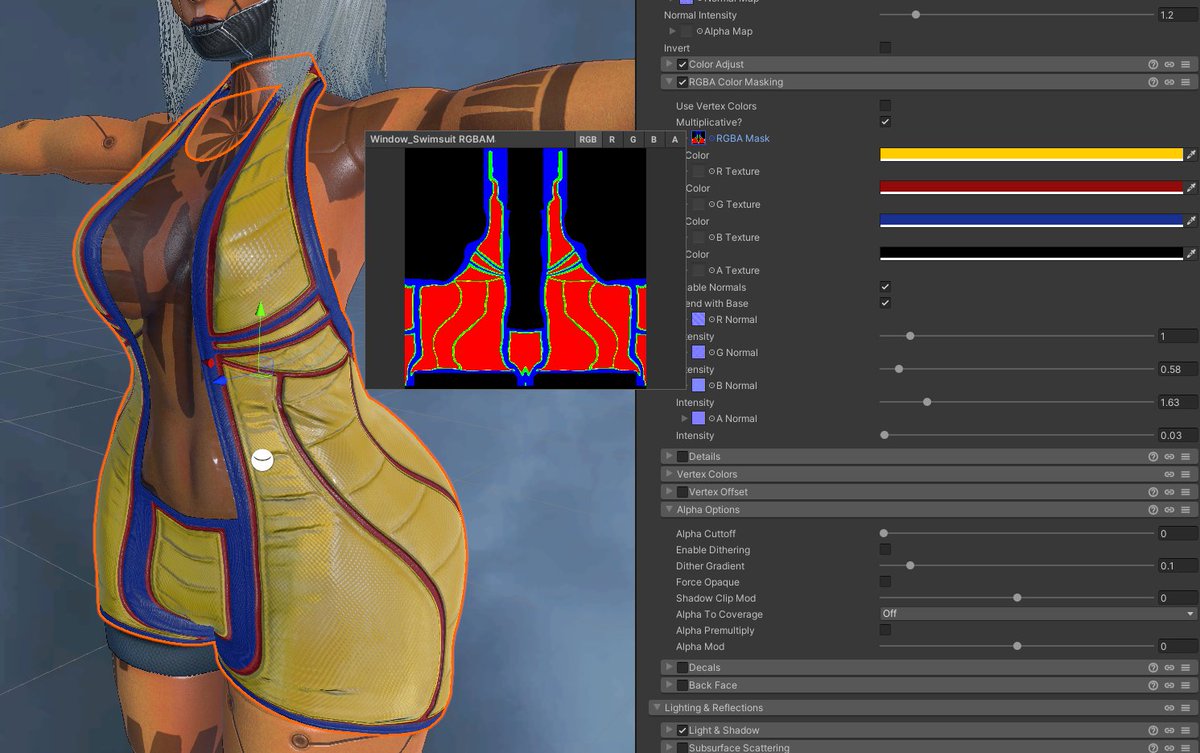

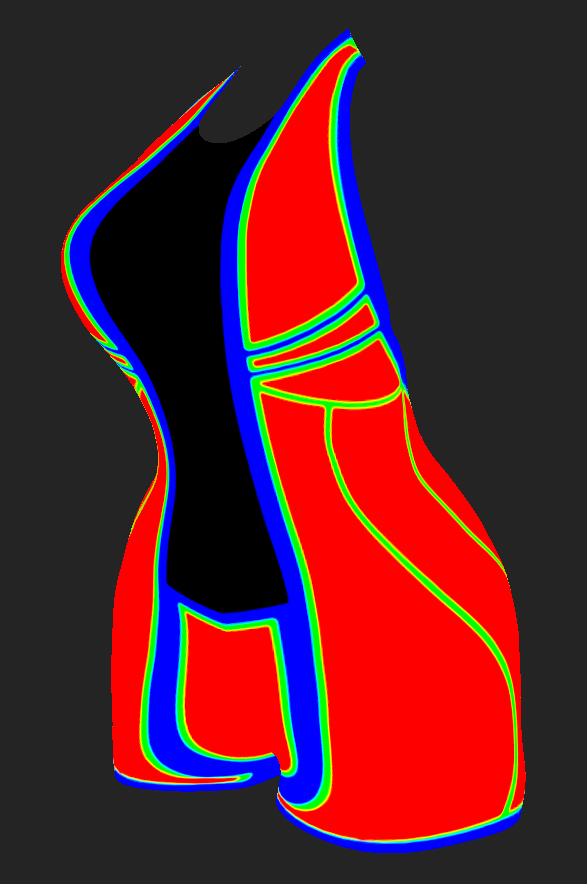

    RGBA masking requires an RGBA texture - this defines where the shader acts on the mesh. Left, map. Right, shader setup. The region in red can be changed in shader to display as yellow, etc.

    1 reply . 1 retweet 10 likes
    Show this thread
    Show this thread
    Undo
  10. Apr 23

    RGBA Masking is a particularly handy feature of the shader - similar systems are used in game dev, but it's particularly handy in VRchat - good performance, and easily customisable

    1 reply . 4 likes
    Show this thread
    Show this thread
    Undo
  11. Apr 23

    Single material, 3.3k △, using RGBA masked 256px normals in 's shader. 🧵👇

    8 replies . 31 retweets 205 likes
    Show this thread
    Show this thread
    Undo
  12. Apr 23

    Dropping a big thread in a few mins with some how-to's 👆

    3 likes
    Show this thread
    Show this thread
    Undo
  13. Apr 23

    tasty cloth normals

    1 reply . 2 retweets 45 likes
    Show this thread
    Show this thread
    Undo
  14. Apr 23

    Vrchat phys bones really is something

    3 replies . 12 likes
    Undo
  15. Apr 20

    thanks for all the interest! wow

    1 like
    Show this thread
    Show this thread
    Undo
  16. Apr 20

    wasn't meant to schedule this yet lmao

    1 reply . 2 likes
    Show this thread
    Show this thread
    Undo
  17. Apr 20

    base <-> textures

    5 replies . 21 retweets 141 likes
    Show this thread
    Show this thread
    Undo
  18. Apr 20

    More

    1 retweet 10 likes
    Show this thread
    Show this thread
    Undo
  19. Apr 20

    Leg detailing.

    5 replies . 12 retweets 93 likes
    Show this thread
    Show this thread
    Undo
  20. Apr 9

    LEGO bitches

    1 reply . 2 retweets 6 likes
    Undo
