Tom Keddie

@tom_keddie

I'm Tom.

yvr
Vrijeme pridruživanja: rujan 2010.

Medijski sadržaj

  1. 3. velj
  2. 3. velj
    Odgovor korisniku/ci

    Another good choice would be some magnification. We use an HDMI unit at work that has so little lag you can solder under it alone. Great for inspection too, you can see right under smaller BGAs.

  3. 3. velj
    Odgovor korisniku/ci

    David Byrne is so amazing, he still moves like he is a 20yo. Still so awesome, saw his show last year (?), was so amazed. How the heck his tech crew manages to get like 16 performers _completely_ wireless I do not know.

  4. 29. sij
    Odgovor korisnicima i sljedećem broju korisnika:

    thanks for the idea, I've submitted this. Seems like a torture test for the pca house! that's a good idea but I'd prefer the raw pin as buffers like that can complicate tri-state for i2c and charlieplexing.

  5. 28. sij
    Odgovor korisnicima

    I'm in this video somewhere, it's the first SZ hacker camp. Learnt a lot, especially confidence with using hot air to solder. It was fun but I've never been game to reball since. The most fun was had by those who overheated their batteries, bang!!!

  6. 28. sij
    Odgovor korisniku/ci

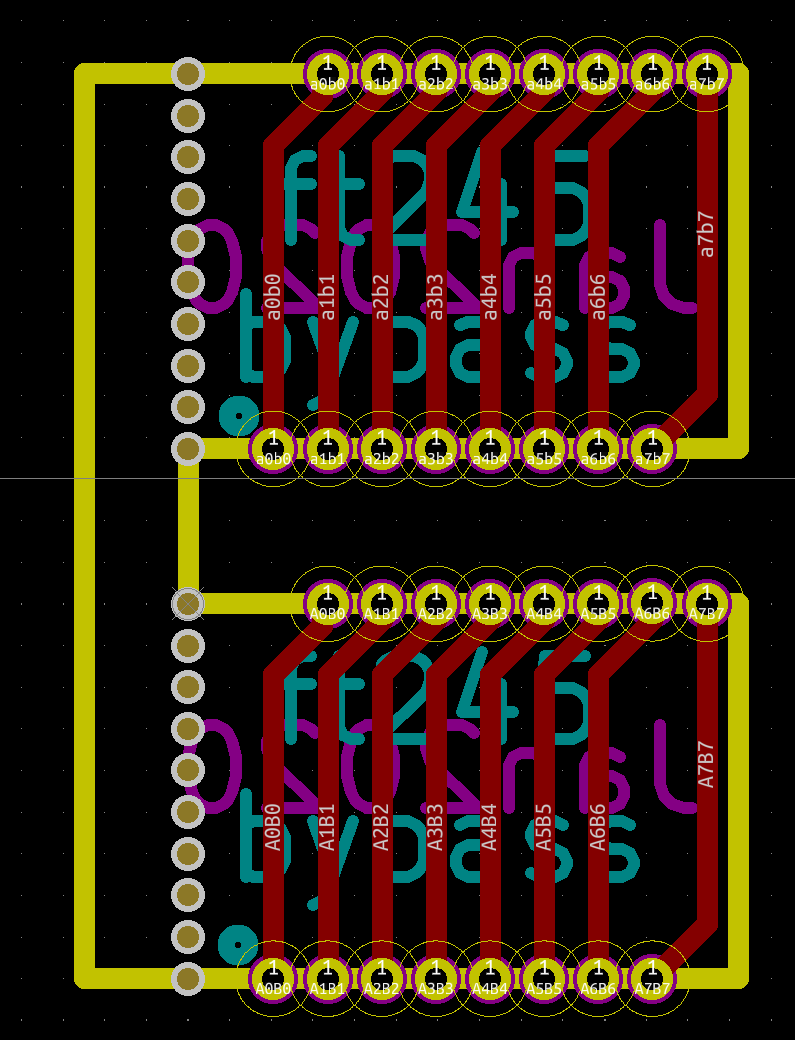

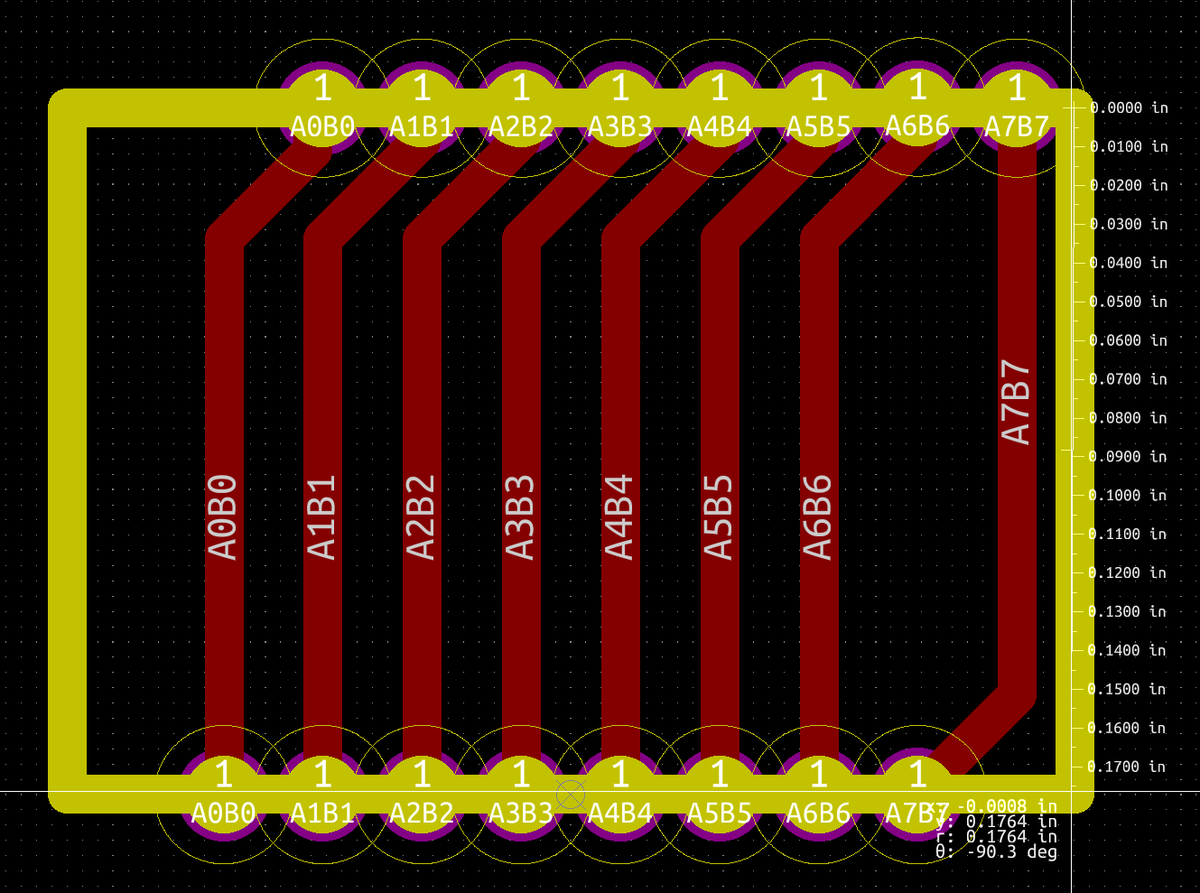

    I tried to hack a small pcb together to bypass the 74HC245 drivers on the Colorlight 5A-75B but it's well under the oshpark minimum (0.25x0.25). Not sure there's much we can do here, ? ? Perhaps I'm late to this conclusion.....

  7. 24. sij

    Hey I built a machine years ago to do this, made you a quick video, might give you some ideas.

    Prikaži ovu nit
  8. 20. pro 2019.
    Odgovor korisnicima

    The details are at I had a batch at but the template I used messed up some on the cartridge (3.3v and gnd were reversed).

  9. 19. pro 2019.

    my elcheapo two layer version of your xmas ornament turned out well. Thanks for sharing the design. Here is my version more PCB goodness from my shipment.

    Prikaži ovu nit
  10. 17. pro 2019.

    A new 8 digit charlieplexed pmod is the latest from my shipment. The brightness/refresh is terrible because I'm driving it from python over the litex uart bridge.

  11. 10. pro 2019.

    Next up we have another borrowed image from corporate germany. (complimented with an image from corporate china with the substrate vendor's logo)

  12. 10. pro 2019.

    The order I bought from was over 4kg of pcb goodness, a personal record. Next up we have the east-van-arrow sao, a less religous version of the east van cross ()

  13. 10. pro 2019.

    More pcb fun in my shipment from , next up we have mr-fixit. Art borrowed from the side of a van in Munich.

  14. 8. pro 2019.

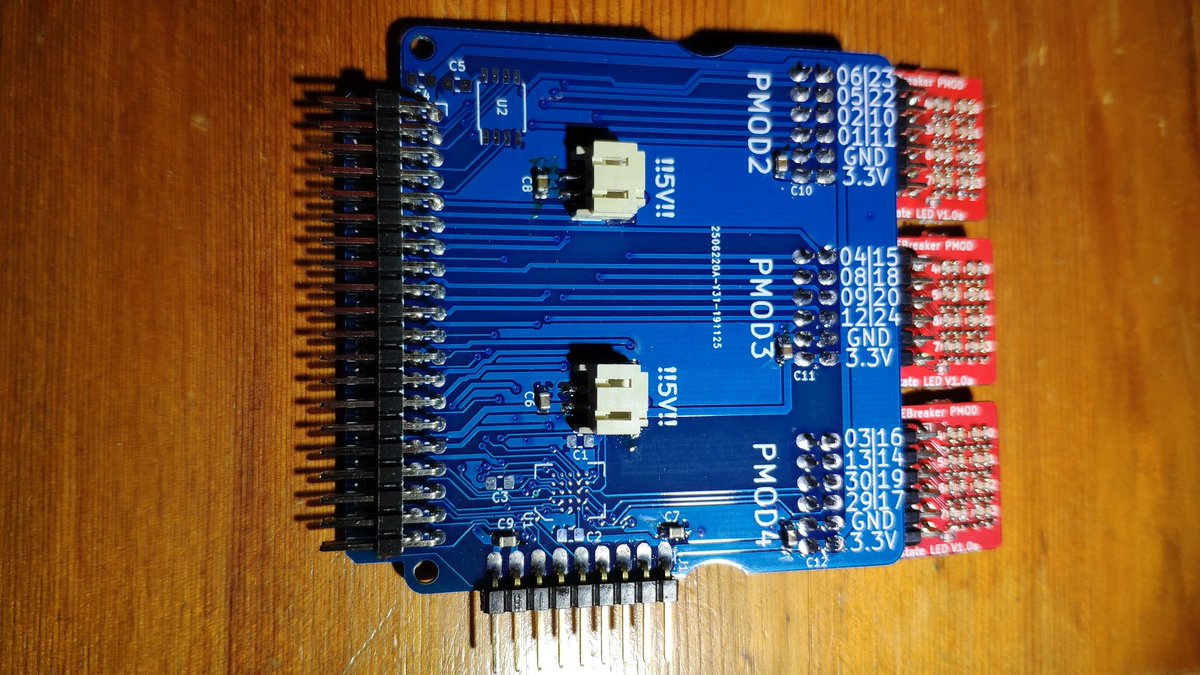

    Rev 1.2 of the badge pmod3 cartridge is back from and tests out well.

  15. 26. stu 2019.
  16. 25. stu 2019.
    Odgovor korisnicima

    Am torturing the system, woke to this email. Thanks for checking, it's ok. " shown below, the words in Top silk screen layer are overlayed with the words in the Top solder mask layer. the bottom sides,it will exposed the traces."

  17. 21. stu 2019.
    Odgovor korisnicima i sljedećem broju korisnika:
  18. 17. stu 2019.

    the back side is super sh&%!y, especially the wrong gender connector thing....

    Prikaži ovu nit
  19. 17. stu 2019.
    Prikaži ovu nit
  20. 17. stu 2019.
    Odgovor korisniku/ci

    Hey Nick I have a few 18650 with me and a usb charger, let's talk. Am planning to be soldering around 9:30am.
