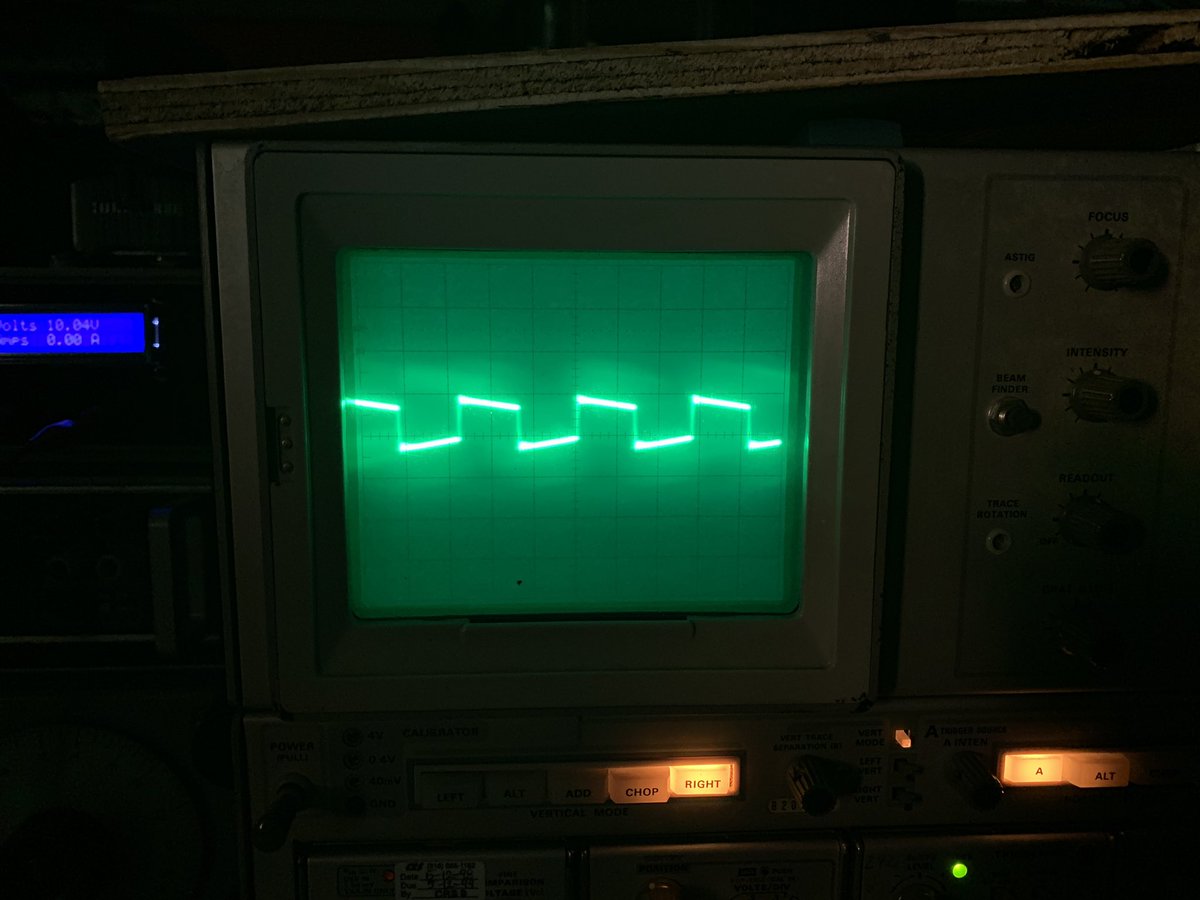

1khz switching with slow Vds sweep to -10V, notice pre-threshold region, linear/ohmic/triode region, and saturation where increasing Vds does not change waveform amplitude. Cgs (gate cap.) is huge and can be visually seen by the sloping edges of tracepic.twitter.com/WkxczAaNeo
-
-
Prikaži ovu nit
-
175kHz


should be no problem increasing these speeds 10x or 100x by making a smaller gate length next time for starterspic.twitter.com/FO43XWhVfW
Prikaži ovu nit -

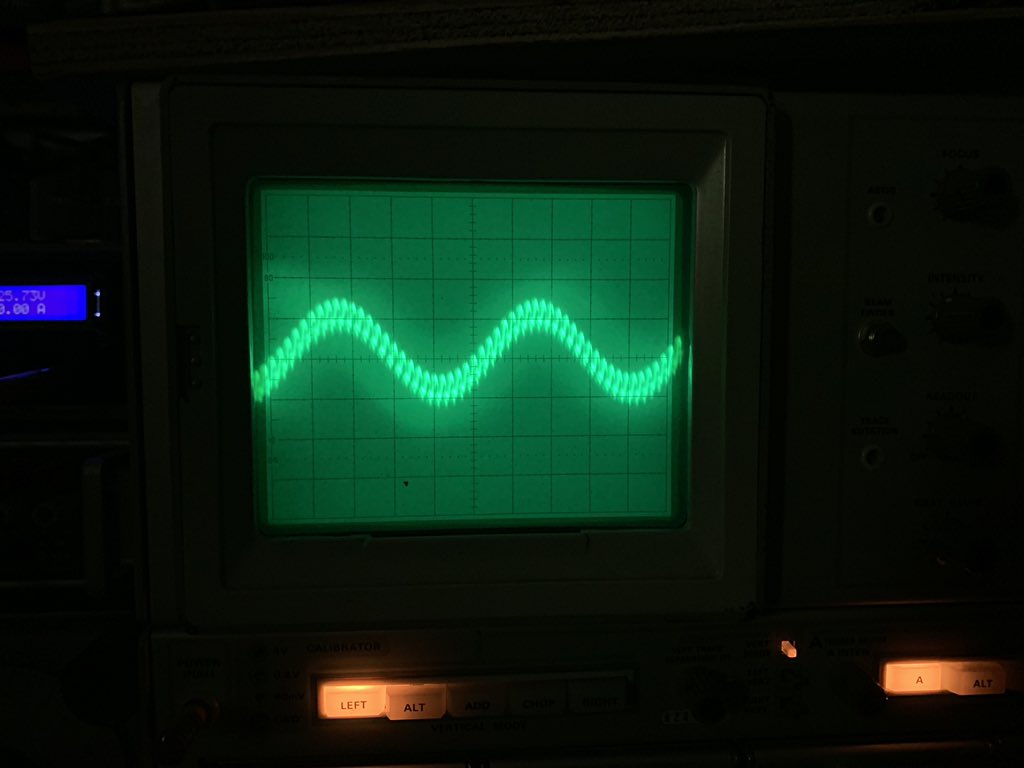

homemade differential amplifier with two sine waves on inputs (1khz and 50khz), basically mixes / multiplies them together and you get a modulated carrier on the output as expectedpic.twitter.com/2jmnMYzoX9
Prikaži ovu nit
Kraj razgovora
Novi razgovor -
-
-

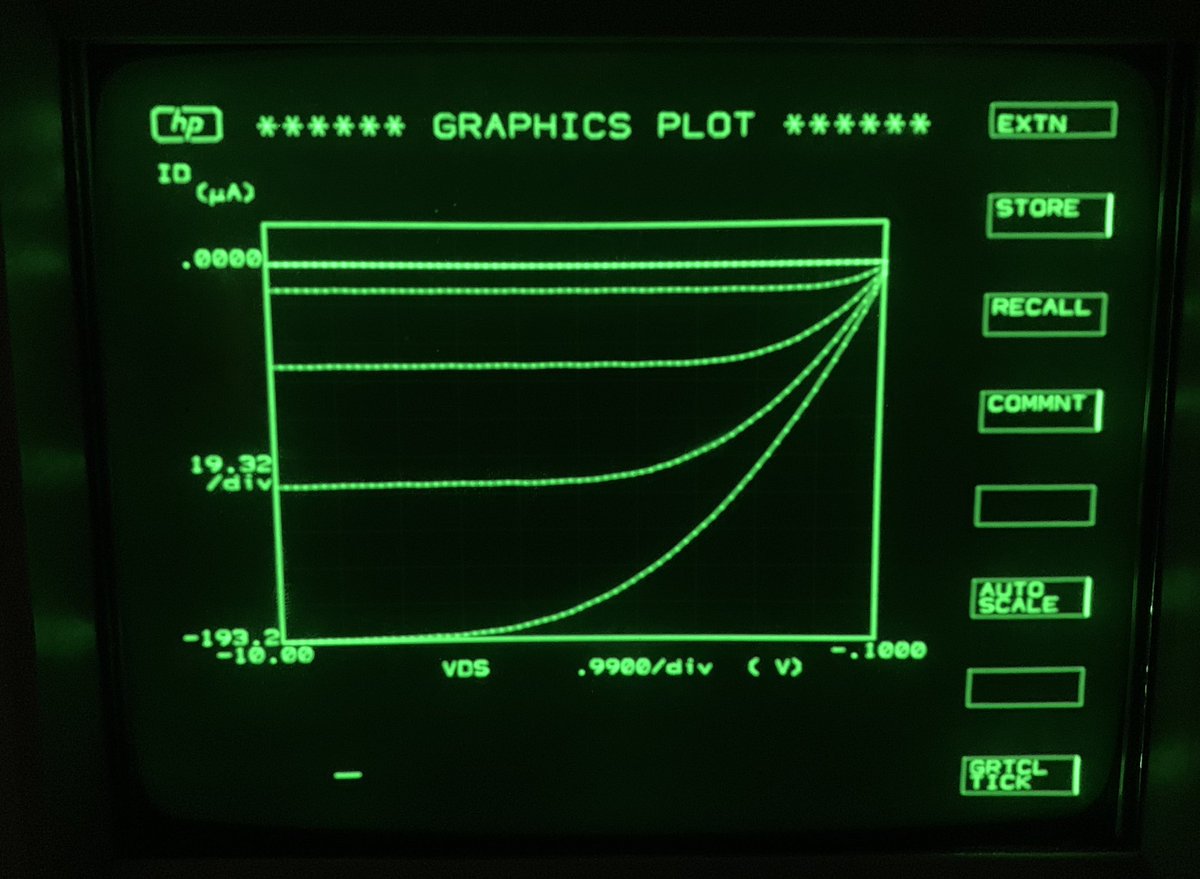

what are the gate voltages on the IV plot?
-
Sorry should have said, 5 traces with -1V step
- Još 3 druga odgovora
Novi razgovor -
-
-
What is the test screen thingy you have it hooked up to? Looks super cool :D
-
HP 4145A, thanks to
@babbageboole for picking it up at Weirdstuff warehouse (rip)
Kraj razgovora
Novi razgovor -
-
-
where did you get the carrier from??
-

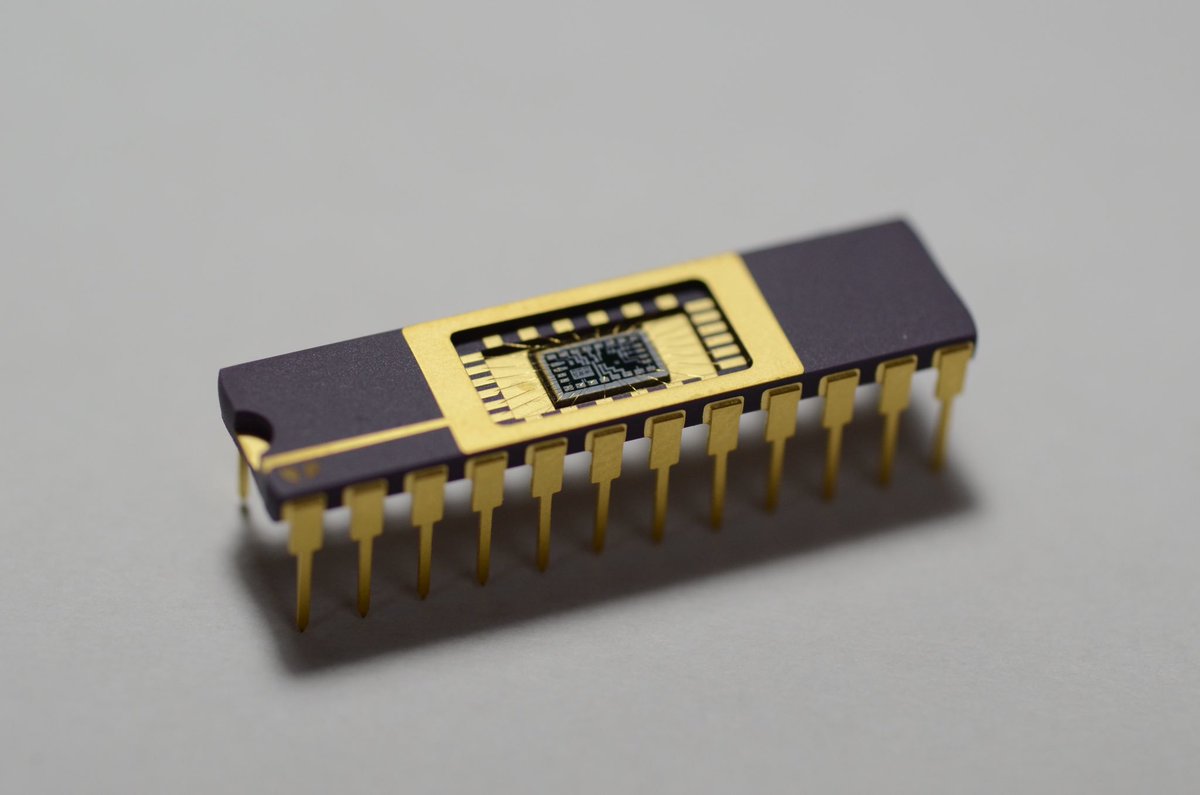

eBay, manufactured by Kyocera
- Još 1 odgovor
Novi razgovor -
-
-

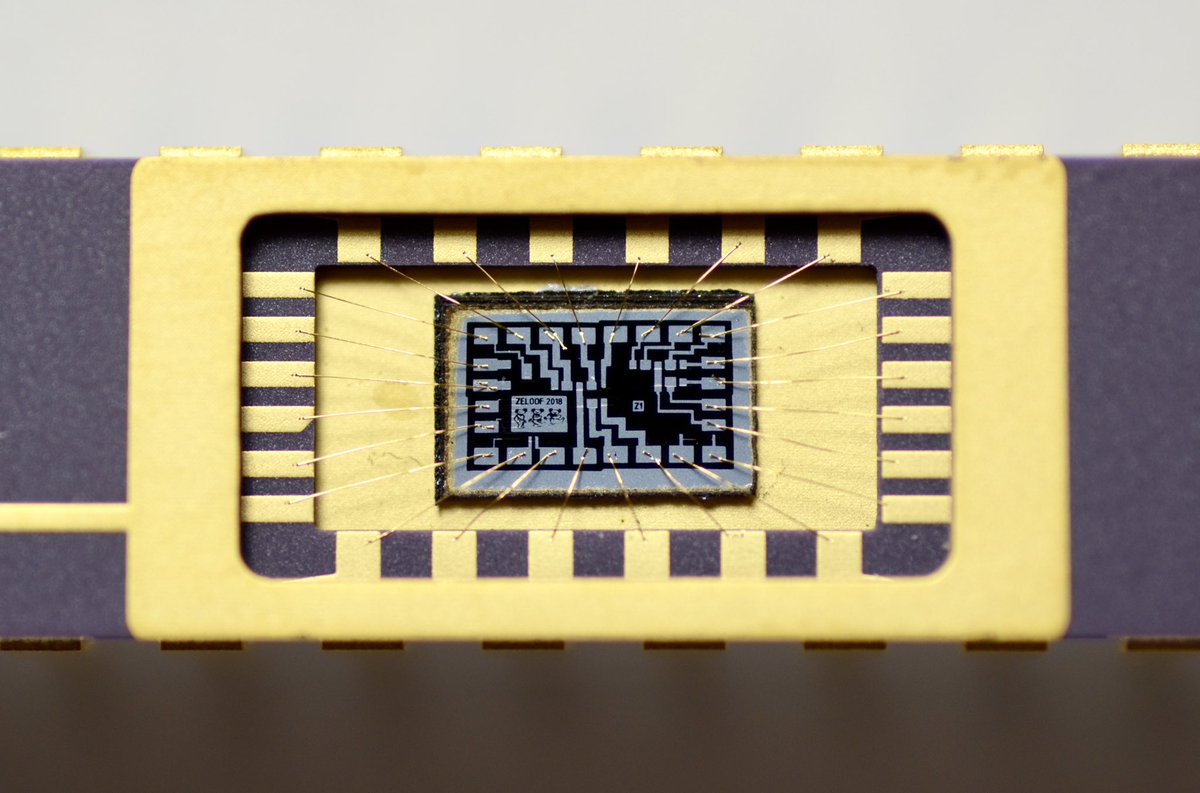

I'm almost more impressed that you got it bonded than that you made the die :P Wire bonding is a *pain*. Still waiting to see you make a WLCSP.
-
Flip chip works with this and 3M z axis conductive tape, hard to align though. Had difficulties making solder bumps on Cu top metal layer for wlcsp but it’s possiblepic.twitter.com/Bol2JyqpWM
