I miss doing VIP boards :( made layout so much prettier. though I don't miss worrying about the epoxy fill type
When you finally feel up for doing some via-in-pad design because you understand why it's not something you should do in general.
-
-
-
it does make layout SO much prettier (just looking at these boards I got back this week)
-
totally wish VIP was possible always
-
I know! Maybe some day
@oshpark will offer it
-
That would be awesome! I just taped out an 8 GHz mixed signal design on oshpark...
-
Really hoping the decoupling cap inductance doesn't kill me. ViP = uber-low L
-
8GHz is def pushing it, but you can probably get away with a thin dielectric & multiple vias
-

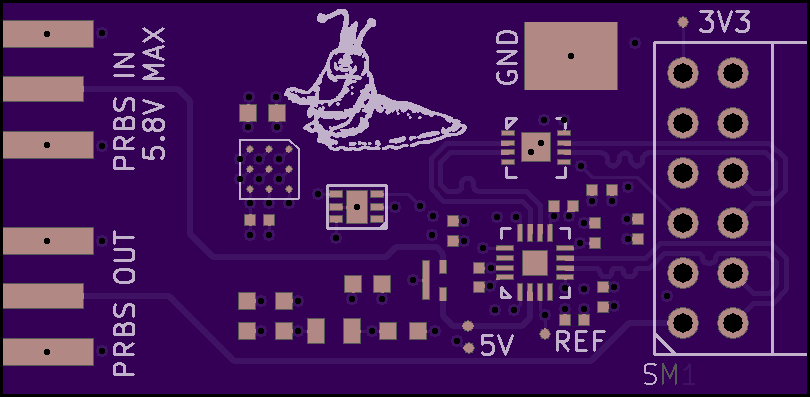

Here's the PCB. 8 GHz B/W sampling oscilloscope for PRBS testing. Targeting 100ps timebasepic.twitter.com/emXslJJwla
- 2 more replies
New conversation -
-
-
I'm going to start a business selling tiny tiny copper plugs...
-
I mean we're talking really tiny
End of conversation
New conversation -
-
-
Doing VIP for QFN heat/current/RF or dense BGA breakout or...? I've gotten away with mask plugs in QFN pad vias w/
