@starsandrobots Simulators might not get this right. But picking a starting place (Q1 on) and following the voltages helps to visualize it.
-
-
-
@sync_channel agree — that's a superb way to go about this one -
@starsandrobots Perhaps a water analogy with opposing buckets (caps) and pumps (BJTs). Good luck! So much good theory in a simple circuit.
End of conversation
New conversation -
-
-
@starsandrobots capacitor charges up, pulls gate(or is it drain?) Of the transistor high, repeat. -
@Ascii211@starsandrobots these aren't FETs, no gates/drains ;) -
- End of conversation
New conversation -
-
-
@starsandrobots I tried, and I think the answer is "magic".Thanks. Twitter will use this to make your timeline better. UndoUndo
-
-
-

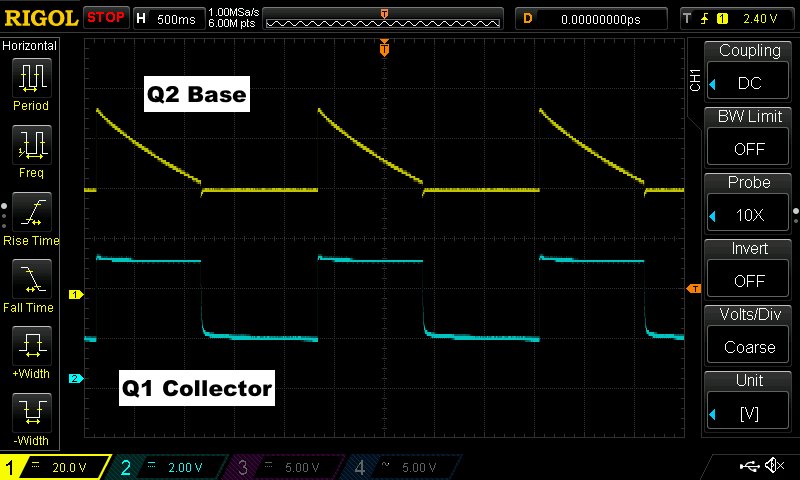

@starsandrobots Here's a scope capture to help. One transistor, say, Q1, turns on first. It's LED lights. (1/3)pic.twitter.com/w1ihr9jiAF
Thanks. Twitter will use this to make your timeline better. UndoUndo
-
-
-
@starsandrobots New transient on C2 forces Q1 off. Transient begins to die on C2. Bam you have oscillation. :)Thanks. Twitter will use this to make your timeline better. UndoUndo
-
-
-
@starsandrobots The transient through C1 keeps Q2 BE junction reverse biased. Transient dies, Q2 suddenly turns on. Lights it's LED. (2/3)Thanks. Twitter will use this to make your timeline better. UndoUndo
-
