  1. Pinned Tweet
    2 Feb 2016

    Voyage to Farland, my Mystery Dungeon style roguelike game on Steam.

    Undo
  2. 16 hours ago

    Tesla coil master, Gianni, with a cool "plasma in vacuum jar" demonstration.

    Undo
  3. Jan 22

    Latest shortwave radio. Picked up the Canadian timecode broadcast (CHU callsign) out of Ottawa at 3.33 MHz tonight! Trying out copper foil tape ground plane with copper-clad board "islands" and the new high frequency transistors.

    Undo
  4. Jan 19

    Got some high frequency transistors and love how different they look compared to the regular medium frequency kind (at right).

    Undo
  5. Jan 1

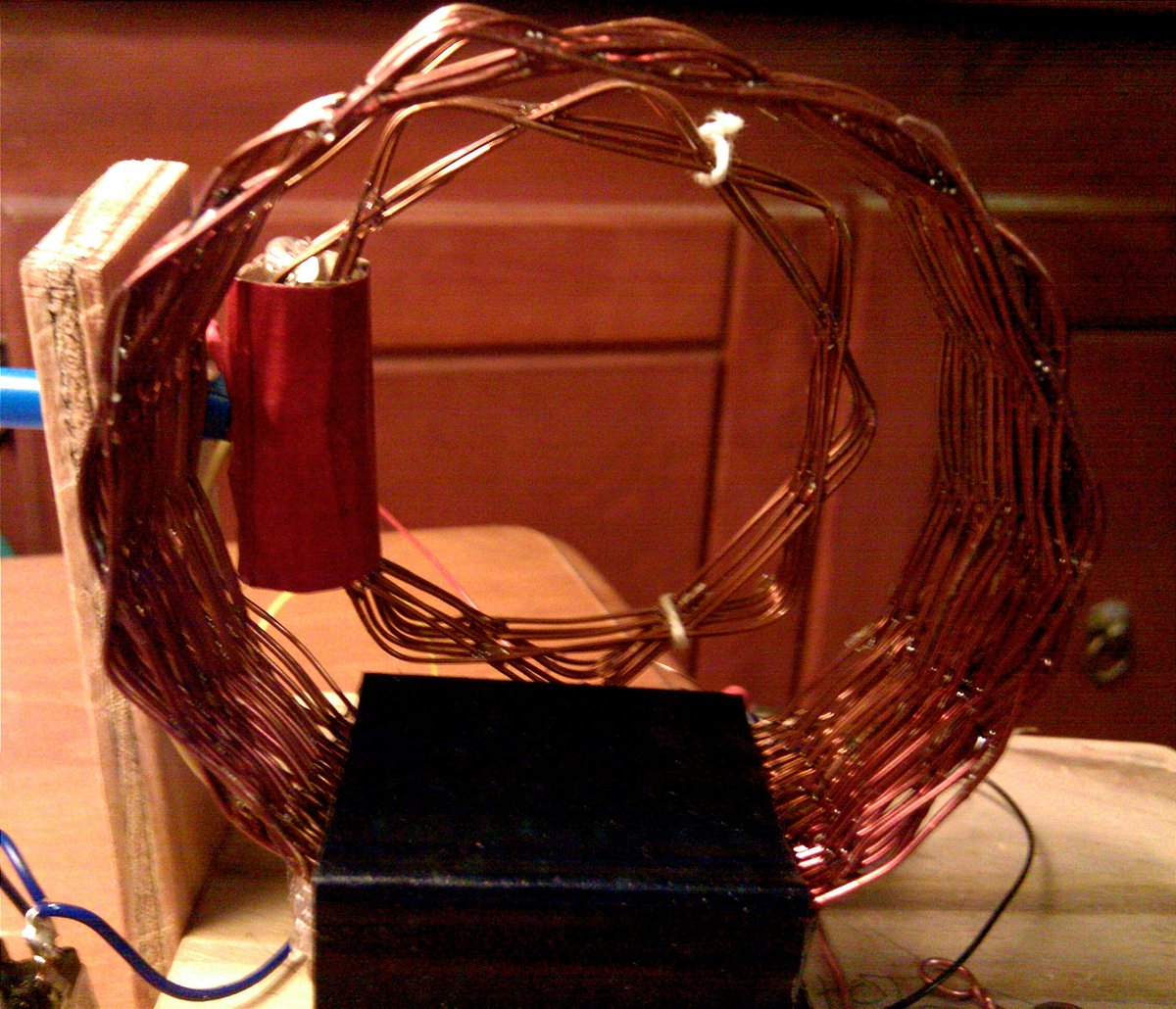

    Still on a quest for the perfect minimalist Polyakov shortwave radio circuit. Part of it is messing with small spider web coil/magnetic loop antenna designs.

    Undo
  6. 21 Dec 2020

    My entry for the December 2020 Ugliest Homebrew Radio contest.

    Undo
  7. 18 Dec 2020

    Maybe something to do with the joule thief's output transistor feeding directly into the coils, through the RF transistor and into the following audio amp?? A fat capacitor and/or choke may fix it, but I like PNPs and keeping the part count down, so will stick with that.

    Show this thread
    Undo
  8. 18 Dec 2020

    About yesterday's Joule Thief for the micropower Polyakov shortwave receivers -- has the potential (hehe) to cause noisy oscillations for the NPN variant. In cartoon form...

    Show this thread
    Undo
  9. 17 Dec 2020

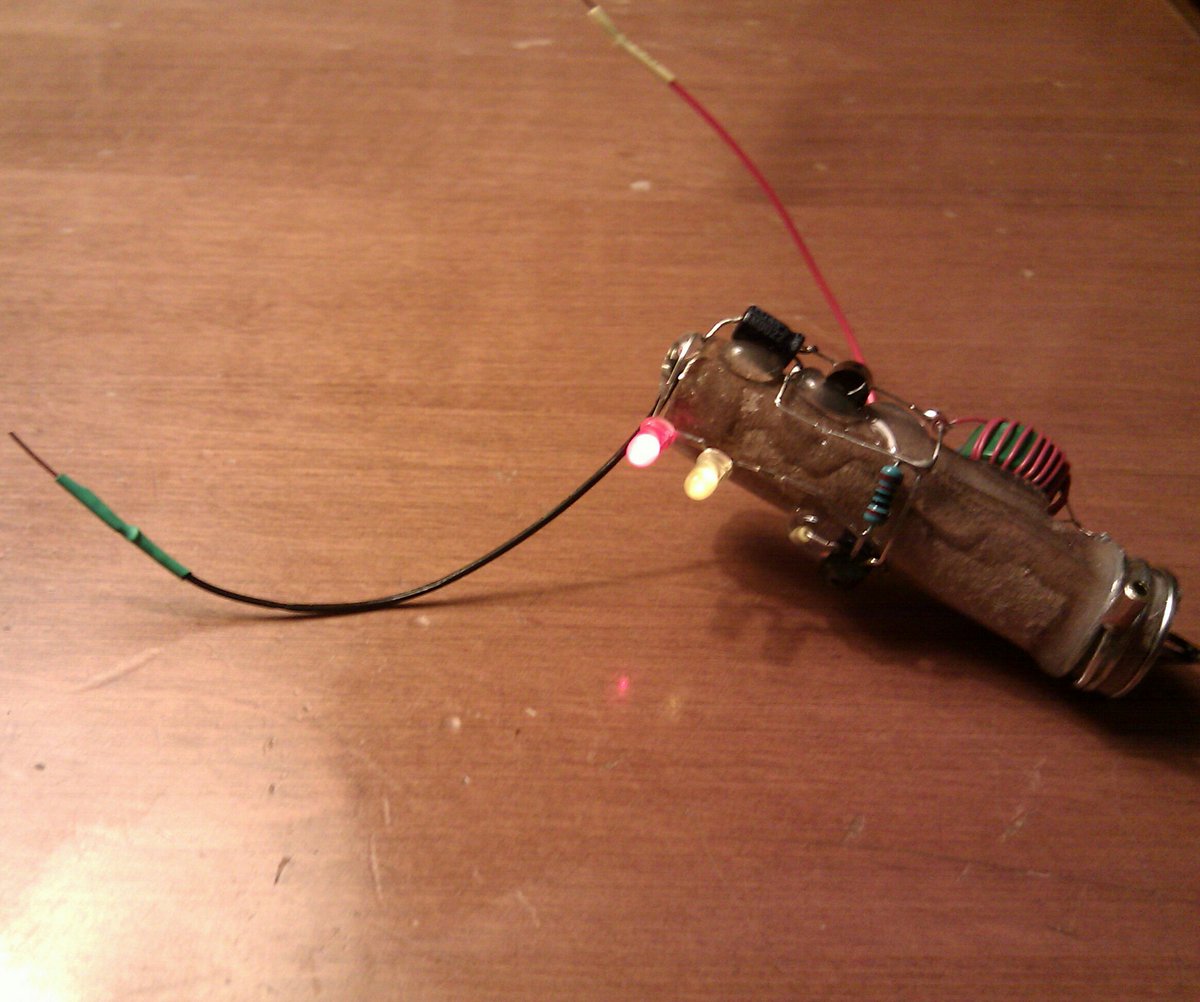

    Threw together another funky "Joule Thief" to bump a dying AAA battery up to 3V for powering all the little shortwave radios I've been making.

    Undo
  10. 9 Dec 2020

    Now I'm building radios on soup can bottoms... That's epoxy gluing it on a piece of paper board BTW, not cream of mushroom. ;)

    Undo
  11. 3 Dec 2020

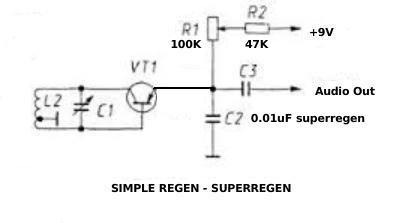

    It's essentially this circuit, with a little single transistor audio amp on the output and a piezo "buzzer" as an earpiece.

    Show this thread
    Undo
  12. 3 Dec 2020

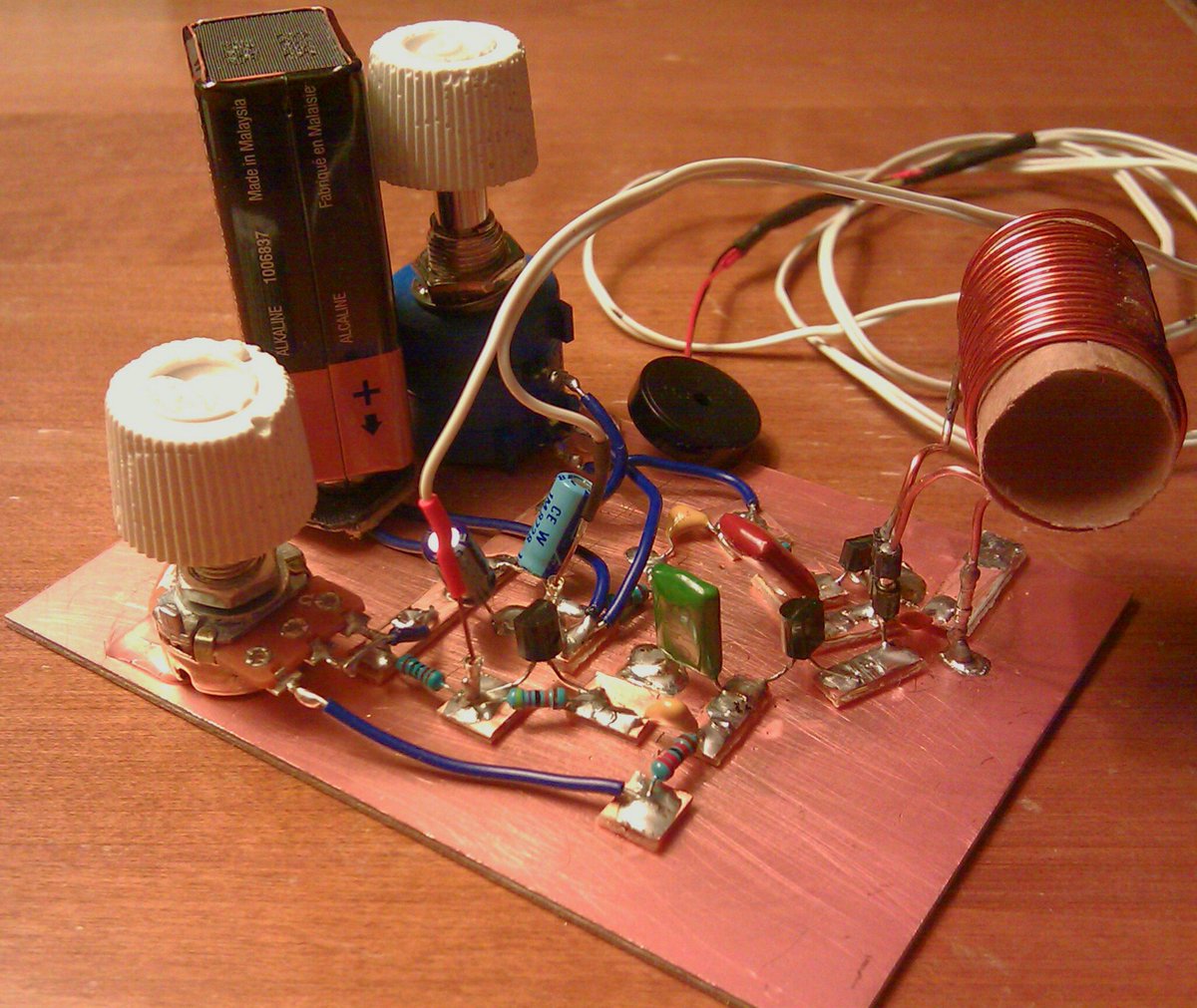

    Messing with another Polyakov shortwave receiver. This one is a "super regenerative" version and was actually able to receive the WWV time signal broadcast at 5MHz from out west in Colorado. :)

    Show this thread
    Undo
  13. 11 Nov 2020

    I love the simplicity. Very clever transistor configuration. The following page in the book dresses it out with an audio frequency amplifier, which is what I built.

    Show this thread
    Undo
  14. 11 Nov 2020

    It's from a fascinating book by V. T. Polyakov. It's in Russian but Google helpfully offers to translate!

    Show this thread
    Undo
  15. 11 Nov 2020

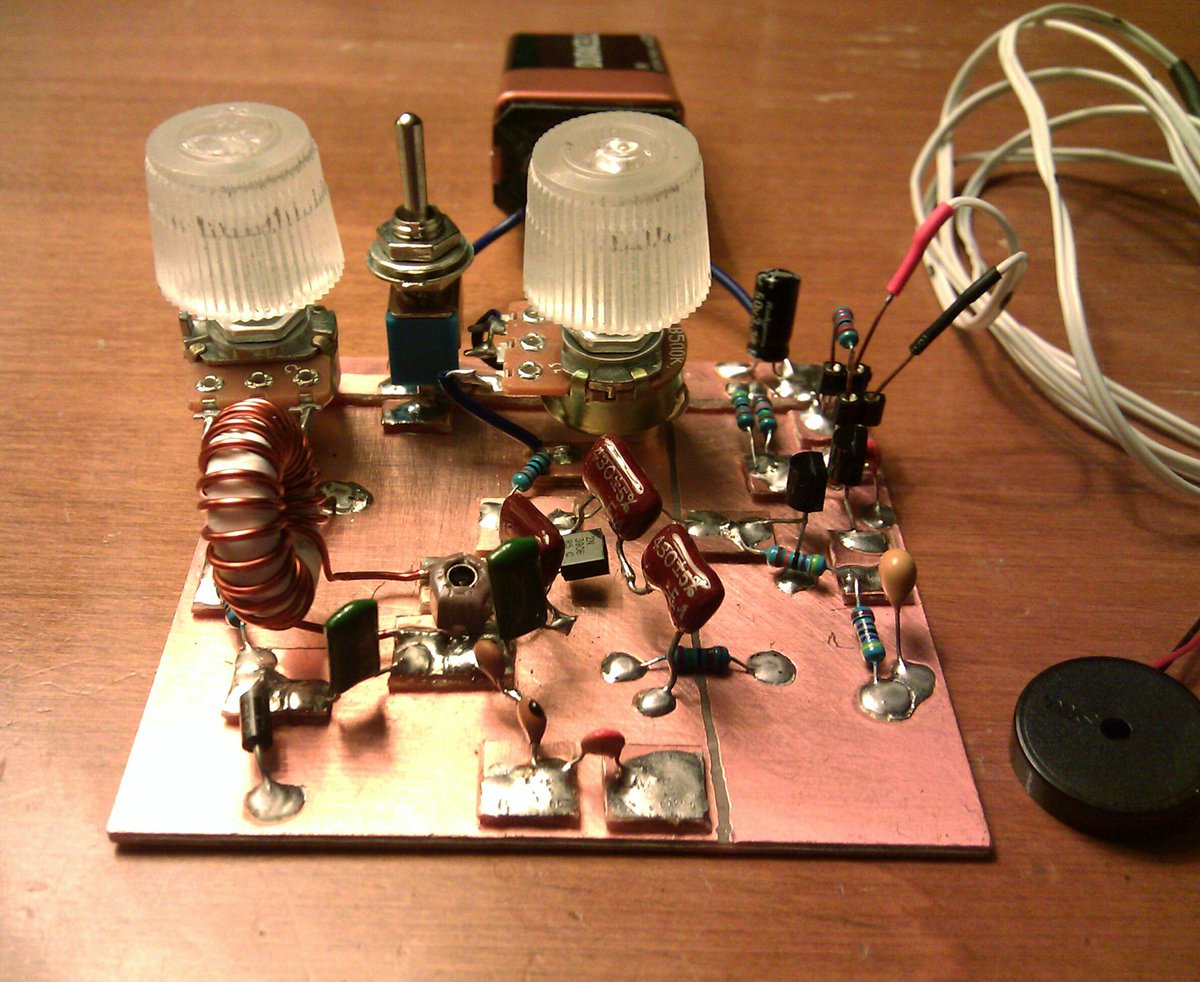

    Soldered up another shortwave radio receiver Manhattan style. This is a "Polyakov autodyne" circuit I've been obsessed with lately and this particular set is designed to tune in to WWV at 5MHz out of Colorado -- the time & frequency standard broadcast station.

    Show this thread
    Undo
  16. 31 Oct 2020

    Wiring up the shortwave radio and it's getting crowded!

    Undo
  17. 30 Oct 2020

    Sexy air variable capacitor for a homebrew shortwave radio.

    Undo
  18. 24 Oct 2020
    Replying to

    Should have added this tweet into the thread.

    Undo
  19. 15 Oct 2020

    Also note the lovely vintage woven cloth covered wire at bottom left & right.

    Show this thread
    Undo
  20. 15 Oct 2020

    Reading about UHF tuners in old TVs on . Here's one from a B/W TV, featuring cavity resonators and air variable capacitors (the disk sections that slide between each other at the top)

    Show this thread
    Undo
  21. 5 Oct 2020

    Waiting on a couple of potentiometers to arrive, but mostly finished this... sculptural (?) shortwave radio circuit.

    Undo
