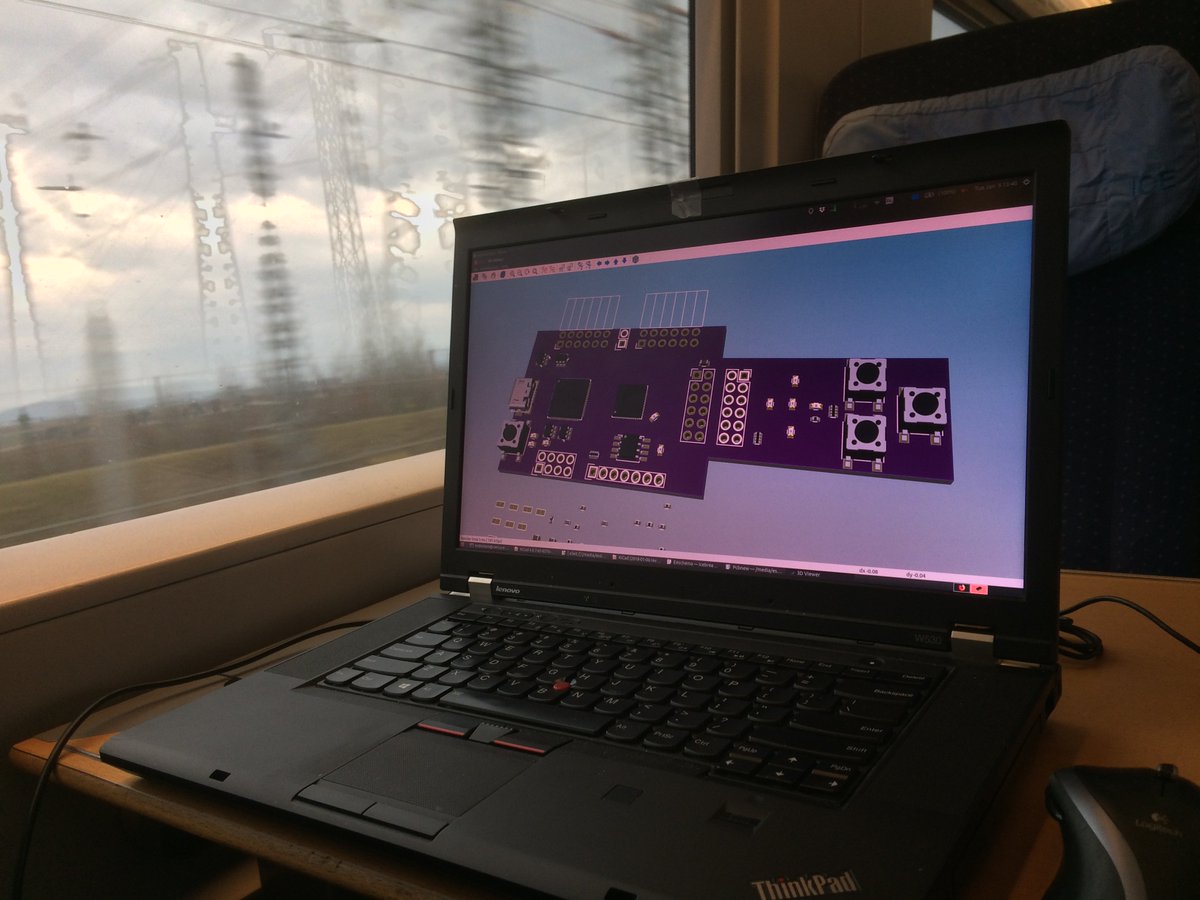

On the way back to Germany! Perfect time to do some iCEBreaker layout work! :)pic.twitter.com/TWV9TEmD6J
-
I guess you want to have a PCB which does not require CNC´ing the outer lines, but only V-slotting.
This is not possible. The break-off part should be a proper PMOD module, so it must not be wider than 0.8 inches, but this is too small for the main section.
-
-
We might want to use a routing step to create "mouse bites" for easy breakaway anyway.
Thanks. Twitter will use this to make your timeline better. UndoUndo
-
-
-
And yes the break off section will require routing no matter what :)
