    1. Claire Xen  🏳️‍⚧️ 🏳️‍🌈 🧙🏻‍♀️ BLM  🏴 🚩‏ @oe1cxw 22 May 2017
      • Report Tweet
      • Report NetzDG Violation

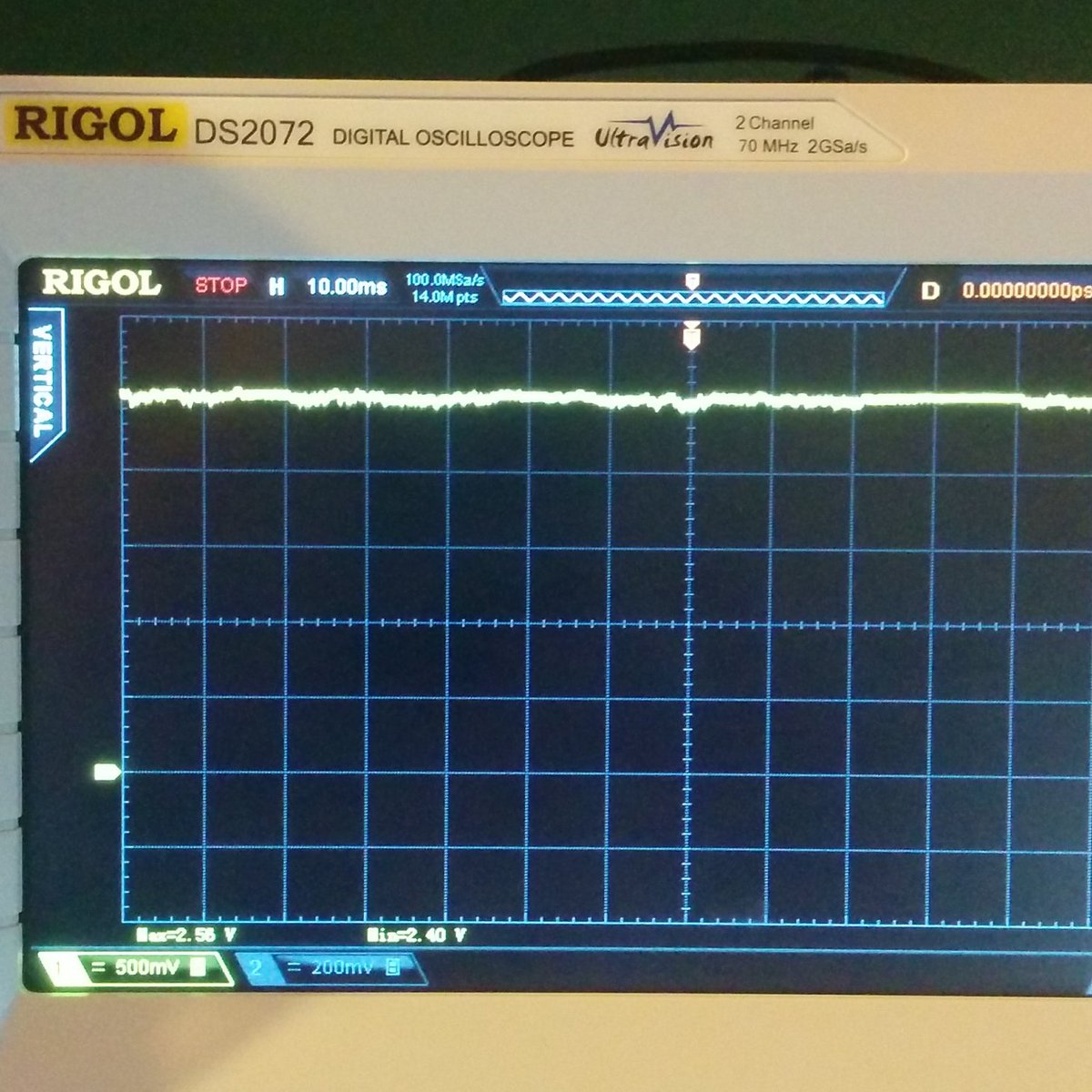

      Today on "Why isn't​ this crap doing what it's supposed to do!?": This is the "1.2V rail" on this board. I've never seen a hot iCE40 before.pic.twitter.com/z04jZOs3cu

      3 replies 1 retweet 2 likes
    2. Kevin Hubbard‏ @bml_khubbard 22 May 2017
      • Report Tweet
      • Report NetzDG Violation
      Replying to @oe1cxw

      Should have used a Spartan-II apparently !

      1 reply 0 retweets 1 like
    3. Claire Xen  🏳️‍⚧️ 🏳️‍🌈 🧙🏻‍♀️ BLM  🏴 🚩‏ @oe1cxw 22 May 2017
      • Report Tweet
      • Report NetzDG Violation
      Replying to @bml_khubbard

      Sometimes its dropping to approx. 1.5V for a few milliseconds. I don't think any part would be happy with this supply rail.

      1 reply 0 retweets 0 likes
    4. Kevin Hubbard‏ @bml_khubbard 22 May 2017
      • Report Tweet
      • Report NetzDG Violation
      Replying to @oe1cxw

      Schematic shows a 5V to 3V buck switcher and then a 3.3V to 1.2V Linear regulator. Are you getting 2.5V on the Switcher output?

      1 reply 0 retweets 0 likes
    5. Claire Xen  🏳️‍⚧️ 🏳️‍🌈 🧙🏻‍♀️ BLM  🏴 🚩‏ @oe1cxw 22 May 2017
      • Report Tweet
      • Report NetzDG Violation
      Replying to @bml_khubbard

      I measured 3.3V on the input to the linear regulator (pin 3 on U10). The picture above is directly measured on U10 output (pin 2).

      1 reply 0 retweets 0 likes
    6. Kevin Hubbard‏ @bml_khubbard 22 May 2017
      • Report Tweet
      • Report NetzDG Violation
      Replying to @oe1cxw

      2.5V is a diode drop from 3.3V. I wonder if 3.3V rail is feeding current into a non-existent 1.2V rail via a diode drop inside the FPGA.

      2 replies 0 retweets 0 likes
    7. Kevin Hubbard‏ @bml_khubbard 22 May 2017
      • Report Tweet
      • Report NetzDG Violation
      Replying to @bml_khubbard @oe1cxw

      More likely scenario is wrong part was stuffed. MCP1700T-2502E/TT is a 2.5V LDO . Is that possible ? Impossible to read on SOT23 of course

      1 reply 0 retweets 0 likes
      Claire Xen  🏳️‍⚧️ 🏳️‍🌈 🧙🏻‍♀️ BLM  🏴 🚩‏ @oe1cxw 22 May 2017
      • Report Tweet
      • Report NetzDG Violation
      Replying to @bml_khubbard

      Then it would deliver stable 2.5V, not this crap. But maybe it is a completely wrong part. Markings are "CK0M", if that tells you anything.

      12:39 PM - 22 May 2017
      1 reply 0 retweets 0 likes
        1. Kevin Hubbard‏ @bml_khubbard 22 May 2017
          • Report Tweet
          • Report NetzDG Violation
          Replying to @oe1cxw

          It doesn't. I only use Rohm LDOs. If I was closer ( closer than 9,000 km ) I would de-solder SOT23 for you and measure output standalone.

          0 replies 0 retweets 1 like
