    1. Greg‏ @GregDavill 20 Dec 2019
      • Report Tweet
      • Report NetzDG Violation

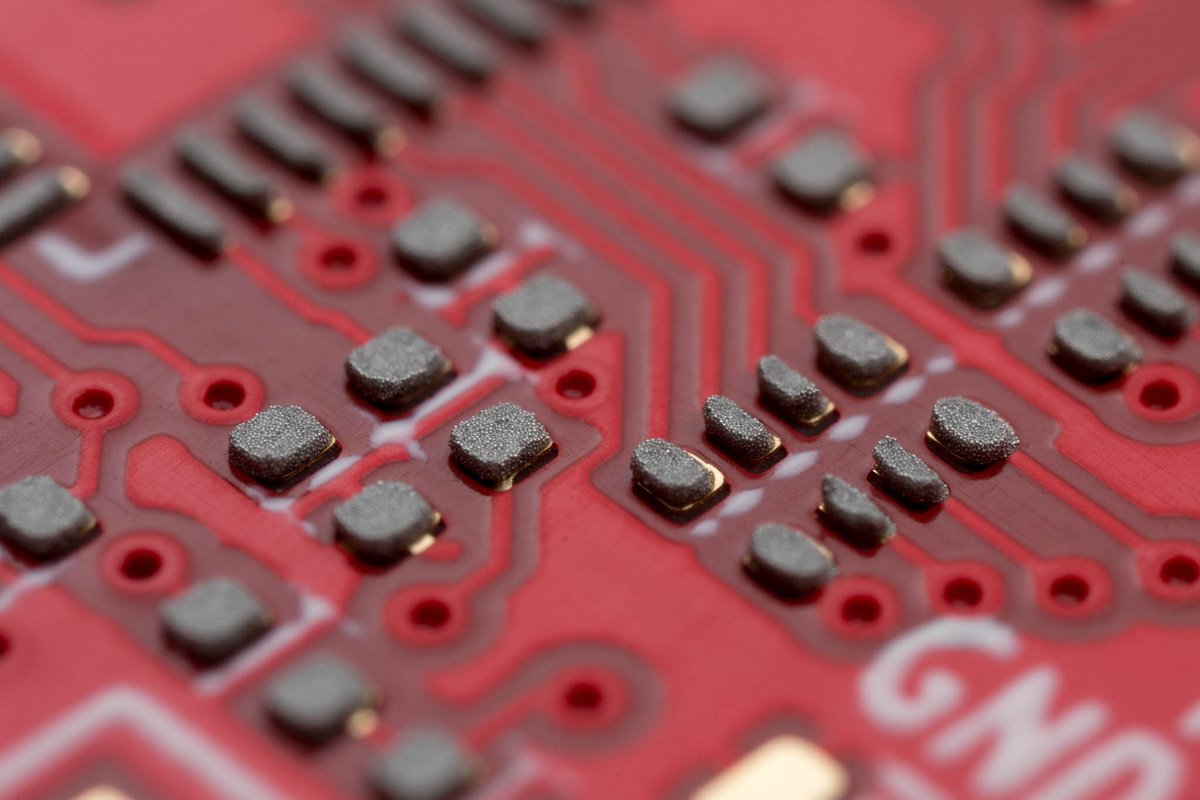

      Loctite GC-10 T4 solderpaste doing all the heavy lifting! :Dpic.twitter.com/V6YpV60tVb

      14 replies 19 retweets 178 likes
      Show this thread
    2. Greg‏ @GregDavill 20 Dec 2019
      • Report Tweet
      • Report NetzDG Violation

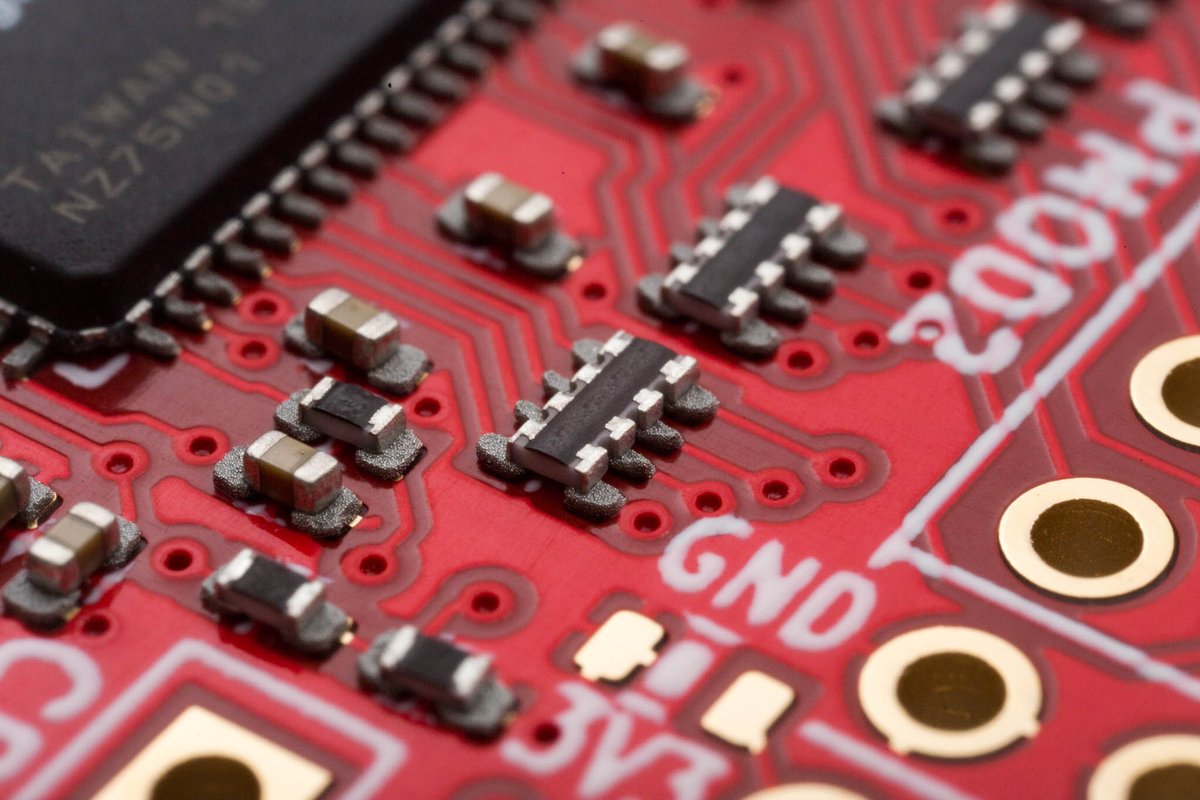

      For such a small PCB this has a decent number of parts, 102 placements in 35 groups!!pic.twitter.com/PnDuwdSW79

      3 replies 6 retweets 65 likes
      Show this thread
    3. Greg‏ @GregDavill 20 Dec 2019
      • Report Tweet
      • Report NetzDG Violation

      Here is a quick breakout board for the @latticesemi Crosslink NX QFN72 part that was announced last week. https://github.com/gregdavill/ArcticKoala …pic.twitter.com/32uXJEvRtf

      6 replies 8 retweets 78 likes
      Show this thread
    4. Greg‏ @GregDavill 20 Dec 2019
      • Report Tweet
      • Report NetzDG Violation

      - Power rails look okay. - FTDI programs the FLASH correctly. - FPGA is not configuring itself, time to work out what I've done wrong. -_-

      1 reply 0 retweets 11 likes
      Show this thread
    5. Greg‏ @GregDavill 20 Dec 2019
      • Report Tweet
      • Report NetzDG Violation

      It's pulling a bitstream from the FLASH. Seems to do 3 'probes', I think this is related to it's dual/multiboot features. Clock rate does change mid-configuration to what I've set in radiant. So it is pulling in valid data.pic.twitter.com/pBd1pHSKSX

      1 reply 0 retweets 10 likes
      Show this thread
    6. Greg‏ @GregDavill 20 Dec 2019
      • Report Tweet
      • Report NetzDG Violation

      I don't think the I/O drivers in the NX part are stronger than the FTDI. (Which might be the case with ice40) Isolating the FTDI from the SPI bus let's the FPGA configure!! 😁pic.twitter.com/OG6OlC0BCe

      2 replies 2 retweets 14 likes
      Show this thread
    7. Greg‏ @GregDavill 20 Dec 2019
      • Report Tweet
      • Report NetzDG Violation

      Adding some 100R inline resistor fixes that issue.pic.twitter.com/uvUujFXBIO

      4 replies 4 retweets 45 likes
      Show this thread
    8. Greg‏ @GregDavill 20 Dec 2019
      • Report Tweet
      • Report NetzDG Violation

      I've been using `iceprog` to handle programming of the FLASH. After loading a new bitstream the FPGA doesn't boot until poked by a power cycle. turns out iceprog issues a 'Power Down' command when it completes. And the SPI loader logic on CL-NX does not issue a 'Power Up' :'(

      2 replies 0 retweets 15 likes
      Show this thread
    9. Claire Xen  🏳️‍⚧️ 🏳️‍🌈 🧙🏻‍♀️ BLM  🏴 🚩‏ @oe1cxw 21 Dec 2019
      • Report Tweet
      • Report NetzDG Violation
      Replying to @GregDavill

      That's weird. iCE40s do send a power up (and a power down when they are done reading the bitstream). No idea why lattice wouldn't want to do that in all their parts.

      1 reply 0 retweets 1 like
    10. Greg‏ @GregDavill 21 Dec 2019
      • Report Tweet
      • Report NetzDG Violation
      Replying to @oe1cxw

      I assume the ice40 SPI master design was all done by Silicon Blue not Lattice? I don't think the ECP5 sends these commands, atleast from my experience with them.

      1 reply 0 retweets 2 likes
      Claire Xen  🏳️‍⚧️ 🏳️‍🌈 🧙🏻‍♀️ BLM  🏴 🚩‏ @oe1cxw 21 Dec 2019
      • Report Tweet
      • Report NetzDG Violation
      Replying to @GregDavill

      Good point. Maybe we should make sending the final power down optional? Considering that iceprog is inherently working with a USB-powered device there really is no point in saving a few microamps.

      1:35 AM - 21 Dec 2019
      • 1 Like
      • arturo182
      2 replies 0 retweets 1 like
        1. New conversation
        1. Adam Greig‏ @adamgreig 21 Dec 2019
          • Report Tweet
          • Report NetzDG Violation
          Replying to @oe1cxw @GregDavill

          Doesn't icepack -s do this?

          1 reply 0 retweets 0 likes
        2. Claire Xen  🏳️‍⚧️ 🏳️‍🌈 🧙🏻‍♀️ BLM  🏴 🚩‏ @oe1cxw 21 Dec 2019
          • Report Tweet
          • Report NetzDG Violation
          Replying to @adamgreig @GregDavill

          -s should just slow down the SPI clock to 50 kHz. (Main use case is SW-based logic analyzers.)

          1 reply 0 retweets 0 likes
        3. Show replies
        1. Greg‏ @GregDavill 21 Dec 2019
          • Report Tweet
          • Report NetzDG Violation
          Replying to @oe1cxw

          This would be a good option I think. For now, I've just modified a local version to not send the power down command ever.

          0 replies 0 retweets 1 like
