annnd @marcan42 figures it out! it's a PCIe card I had with a Marvell 88SE9230 chip that does some really strange stuffhttps://twitter.com/marcan42/status/978424686995324928 …
-
Show this thread
-

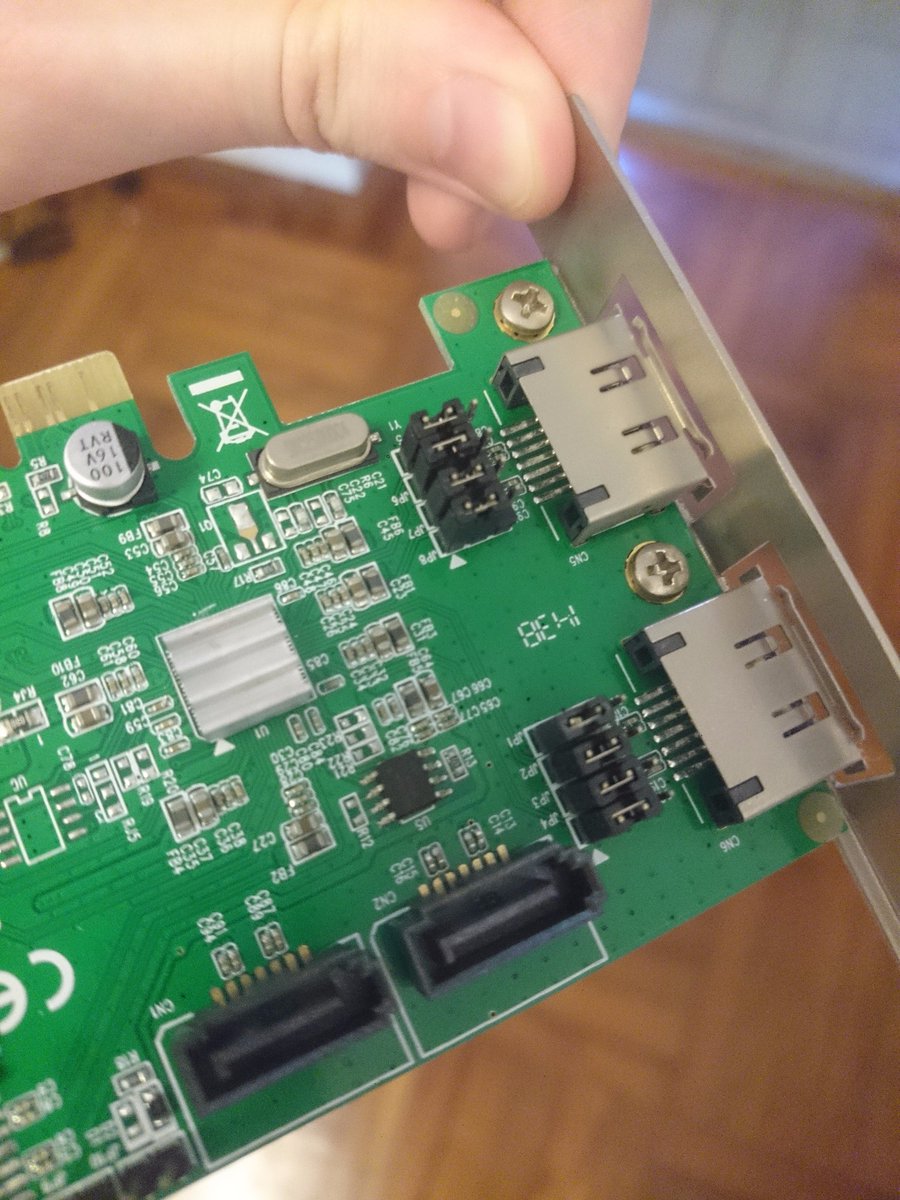

this PCIe card, mind you, SATA III 6 Gbps, in theory at least, offers you a way to switch between internal and external SATA ports. jumpers. routing the SATA data lanes around. I bet the signal integrity is
pic.twitter.com/aKMbjdlCGM
3 replies 2 retweets 33 likesShow this thread -
Replying to @whitequark
Let's just say I've had... not so great experiences with Marvell SATA/SAS controllers. I switched to an LSI SAS2008-based card for good reason. Marvell works... most of the time... if nothing goes wrong. Usually.
1 reply 0 retweets 1 like -
Replying to @marcan42
yyyyeah I'm probably going to return the SAS controller I bought from newegg without even unpacking it and get an LSI one instead
1 reply 0 retweets 1 like -
Replying to @whitequark
If you're going the LSI route, try to get a basic HBA with IT/IR firmware (or that you know for a fact can be crossflashed from iMR mode). Those usually work best. Avoid Dell PERC. IBM M1015 is usually fine (& cheap and available) but you'll want to crossflash it.
2 replies 0 retweets 3 likes -
Replying to @marcan42 @whitequark
TL;DR LSI sold the same chip with two completely different firmwares, PCI IDs, programming interfaces and drivers - one for full-blown hardware managed RAID (iMR) and one for a simple HBA (IT), optionally with basic RAID0/1 support (IR). You can switch with some effort.
1 reply 0 retweets 4 likes -
Replying to @marcan42
oh! yeah, I've already learned to avoid hardware RAID like Superfund sites.
1 reply 0 retweets 5 likes -
Replying to @whitequark
Here's my little horror story with a less-than-popular LSI card. These things work great once you get the right firmware on them, but getting there can be tricky depending on the model.https://marcan.st/2016/05/crossflashing-the-fujitsu-d2607/ …
4 replies 4 retweets 17 likes -
Replying to @marcan42
the... the card has a PowerPC CPU on it? (and MRAM? I didn't even know this is deployed in production) has anyone run Linux on it yet
2 replies 1 retweet 3 likes -
Replying to @whitequark @marcan42
Some "server-grade" Ethernet cards have an embedded CPU like that too (I don't remember if it was Intel, Broadcom, or Mellanox)
1 reply 0 retweets 2 likes
I mean, you can run Linux on a HDD controller, so... Yeah, why not. http://spritesmods.com/?art=hddhack&page=1 …
-
-
yeah, I know that one, but a SAS controller seems more fun. you know why? you could hack it into a 24 Gbps SASternet card if you could control transceivers
3 replies 0 retweets 5 likes -
Replying to @whitequark @rqou_
That... Actually sounds very plausible. I think SAS is symmetric enough it might just work.
0 replies 0 retweets 0 likes
