Yup! Tell me you've been here before.
-
-
Replying to @marcan42
No, but the bigger daikin have a wired controller option. That might be what you are looking at.
1 reply 0 retweets 0 likes -
Replying to @bunnymaid
I don't think they offer that option for this one, though it's nigh impossible to find information "for installers".
1 reply 0 retweets 1 like -
Replying to @marcan42
What model is it? I have like 5 adult Daikin now, (urara&sarara from 2001) still working, but a couple of the remotes have gone faint. I know they are bi-directional so if you want one to discombobulate, just say so.
2 replies 0 retweets 2 likes -
Replying to @bunnymaid
The IR remotes? Those aren't bidirectional AFAIK.
2 replies 0 retweets 1 like -
Replying to @marcan42 @bunnymaid
Anyway as far as I can tell Daikin have a wired control protocol that is standardized-ish for most of their models, and I think I've figured out how to hook up to mine without spending money on official converter boards or WiFi boxes. I just have to reverse engineer it :)
1 reply 0 retweets 1 like -
-
Replying to @bunnymaid
Actually I was thinking of just hooking up my laptop directly to the mains side on battery... I like to live dangerously. (Okay I'd use WiFi and SSH in) Then once I know the protocol, ESP8266 straight inside the aircon, doesn't need to be isolated.
1 reply 0 retweets 1 like -
Replying to @marcan42

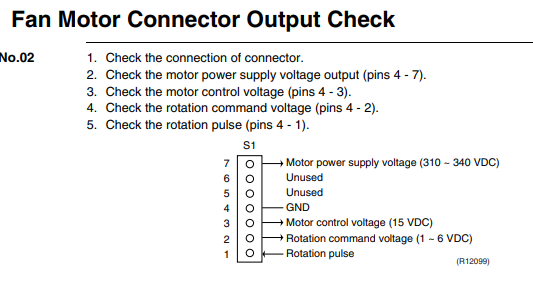

Could this be your mystery connector?pic.twitter.com/nEAFIk2r1G
1 reply 0 retweets 0 likes -
Replying to @bunnymaid @marcan42
Alternatively, there's a 5 pin HA connector ^^;
1 reply 0 retweets 0 likes
The 5 pin HA connector is what the optoisolation board provides, from the connector my unit has. Anyway, I don't know the pinout yet but I'm 95% sure it's a 5V UART on there, at 2400 baud 2 stopbits, and I've worked out most of the protocol from the LAN adapter firmware.
