    1. Greg from Laser Bear Industries‏ @collingall Apr 16

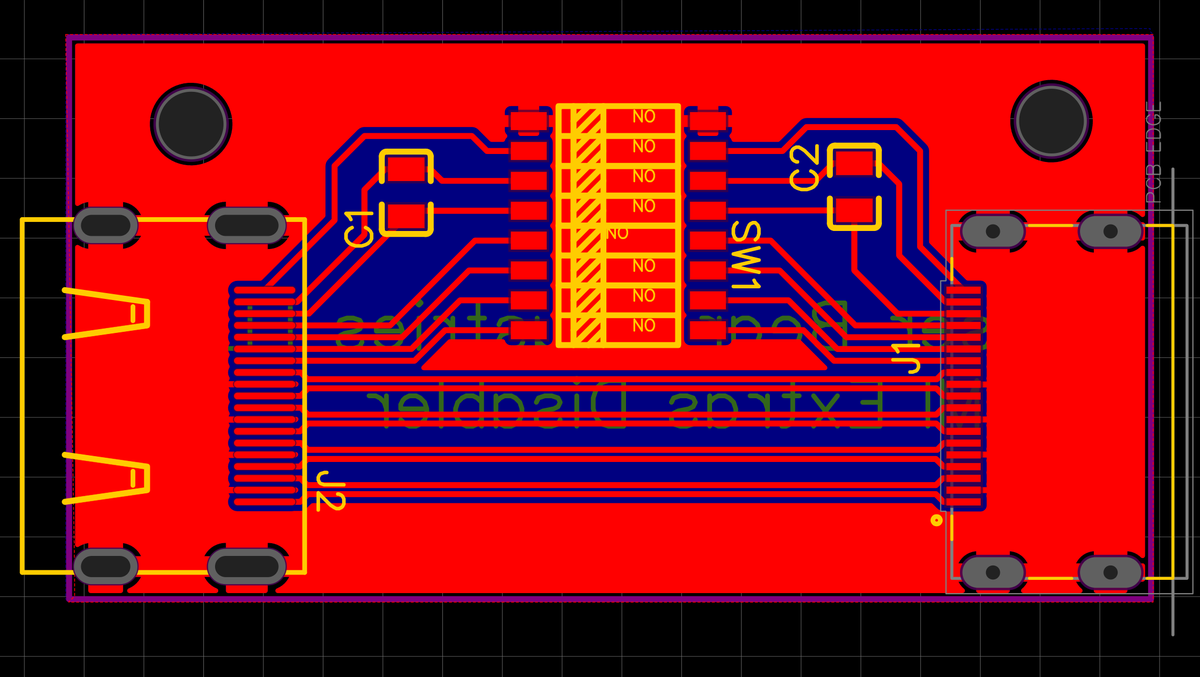

      I was working on a CEC disabler for HDMI, but added in the ability to disable all extra Data function on HDMI with dip switches, would folks be interested in something like that?pic.twitter.com/RKCf8fAUk1

      39 replies 14 retweets 265 likes
    2. Javier Rodas‏ @JaviRodasG Apr 16
      Replying to @collingall @arcade_projects

      It looks like your layout will not work as expected in terms of Signal Integrity (SI). It looks like an auto routed layout not maintaining the right differential impedance on all the 4x pairs of the HDMI connector. I could give you some tips about high speed layout if you want...pic.twitter.com/zybTEYDsai

      1 reply 0 retweets 6 likes
    3. Greg from Laser Bear Industries‏ @collingall Apr 16
      Replying to @JaviRodasG @arcade_projects

      I wanted to gauge interest before I sunk the time into layout beyond a mock up.

      1 reply 0 retweets 3 likes
    4. Javier Rodas‏ @JaviRodasG Apr 16
      Replying to @collingall @arcade_projects

      I understand, just saying that HDMI is quite high speed layout stuff... not trivial. Without a proper controlled impedance PCB stackup and correct impedance matched transmission lines it won’t work.I could help you routing the PCB if you want, when you have finished the schematic

      2 replies 0 retweets 5 likes
    5. Greg from Laser Bear Industries‏ @collingall Apr 16
      Replying to @JaviRodasG @arcade_projects

      I think I have the impedance correct, 10 mill trace width 4 mill separation stackup JLC2313 worked out to 51.5ohms which is within the spec. I did not see anything about the shields, I assumed they all get commoned to GND, but I can go back and change that if its wrong.pic.twitter.com/D9hDs2t3mr

      5 replies 0 retweets 2 likes
    6. Javier Rodas‏ @JaviRodasG Apr 17
      Replying to @collingall @arcade_projects

      I have realized the most important issue is that you are not connecting the pinout correctly with those connector orientation/rotation. Pin 1 is not connected to Pin 1, and so on...

      1 reply 0 retweets 0 likes
    7. Greg from Laser Bear Industries‏ @collingall Apr 17
      Replying to @JaviRodasG @arcade_projects

      I'm using two different connectors one is upside down. I do need to fix the milling though

      4 replies 0 retweets 1 like
      Arcade Projects‏ @arcade_projects Apr 17
      Replying to @collingall @JaviRodasG

      do one of you two wanna design me a JVS shield for MiSTer? =] lol

      5:45 AM - 17 Apr 2021
      • 1 Like
      • Clint Kolodziej
      1 reply 0 retweets 1 like
        1. Javier Rodas‏ @JaviRodasG Apr 17
          Replying to @arcade_projects @collingall

          Sure I can help with that too. If you have an schematic we can check that first and then let me know what you need.

          0 replies 0 retweets 2 likes
