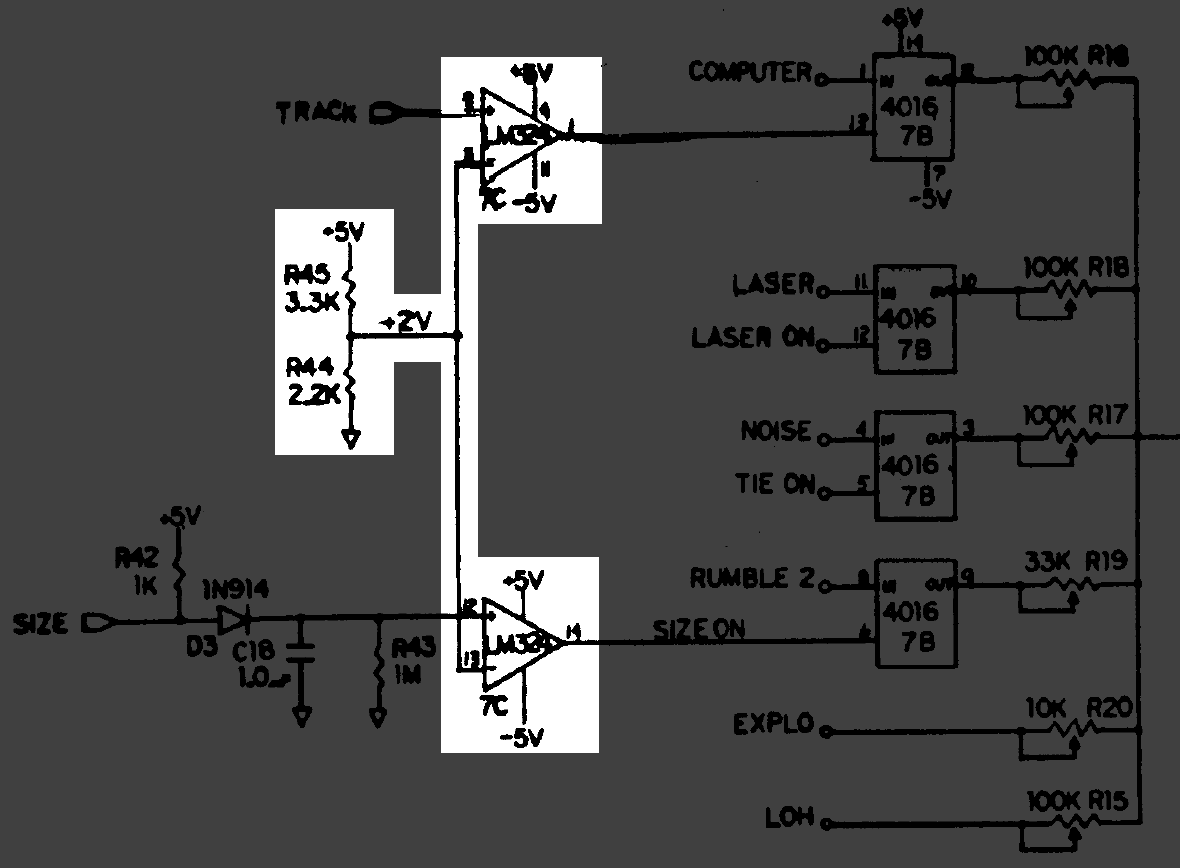

Update on the weird circuit issue: It is, definitively, a typo. In the mixer stage, they use a pair of LM324 op-amps as comparators, except in this case you can clearly see +5V run through a resistor to get +2V, which is then plumbed to the minus legs of the op-amps.pic.twitter.com/HKO7md4IVl
9.08 - 9. elok. 2020
