Any TMS34010 experts out there? I'm trying to sort out the ROM mapping for this one ISA video card. As best I can tell, the boot vector is the last word in the memory space, but in this case it's just FFFF, so, err, it points to itself?
-
-
Vastauksena käyttäjälle @TheMogMiner
Which ISA card is this?
1 vastaus 0 uudelleentwiittausta 0 tykkäystä -
Vastauksena käyttäjälle @PhilBennett3D
Vectrix EX1280. The ROMs are on Bitsavers.
1 vastaus 0 uudelleentwiittausta 1 tykkäys -
Vastauksena käyttäjille @TheMogMiner ja @PhilBennett3D

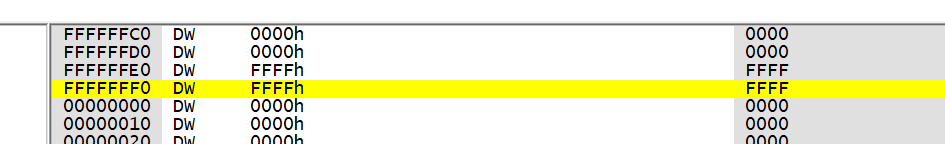

The end of the ROM looks like this, but up towards the top it looks like perfectly legitimate TMS code.pic.twitter.com/cgKntGkeuo
1 vastaus 0 uudelleentwiittausta 0 tykkäystä -
Vastauksena käyttäjälle @TheMogMiner

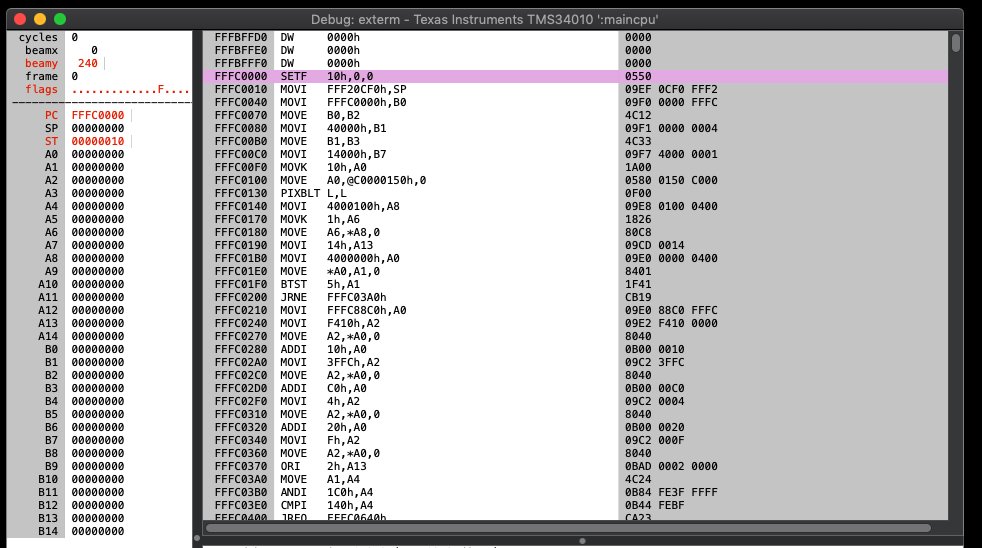

Give this a try: https://pastebin.com/Qnrjr4Gv Note that the address granularity of the 340x0 is 1 bit.pic.twitter.com/9gtl5JMMDh
1 vastaus 0 uudelleentwiittausta 1 tykkäys -
Vastauksena käyttäjälle @PhilBennett3D
Interesting! Seems like the bottom half is code and the top half is font data. Makes me wonder where the top half maps, in that case.
1 vastaus 0 uudelleentwiittausta 0 tykkäystä
Vastauksena käyttäjille @TheMogMiner ja @PhilBennett3D
Oh. NOW I get it. Thanks!
