still some weirdness going on. i found that alternating groups of 8 columns are mirrored. it probably made the layout easier, but it sucks for decoding.
-
Näytä tämä ketju
-
disassembled the first few bits of the 512 byte "hidden" ROM. this is a factory-set ROM in every Intel 80C51 that's probably used for factory test modes. i think a few bits are flipped so it doesn't make 100% sense.pic.twitter.com/hDvXDyyCgO
3 vastausta 9 uudelleentwiittausta 59 tykkäystäNäytä tämä ketju -
care to poke around the die image? http://siliconpr0n.org/map/creative-tech/ct1351v202/stain-hf-ultra_rom_mit20x/#x=407&y=1082&z=6 …
1 vastaus 5 uudelleentwiittausta 28 tykkäystäNäytä tämä ketju -
software i'm using: https://github.com/AdamLaurie/rompar …. it's a little rough around the edges but quite useful.
2 vastausta 7 uudelleentwiittausta 35 tykkäystäNäytä tämä ketju -
how do i know the bit mapping? i traced out the ROM decode circuitry.pic.twitter.com/Slc32fs3UP
1 vastaus 5 uudelleentwiittausta 83 tykkäystäNäytä tämä ketju -

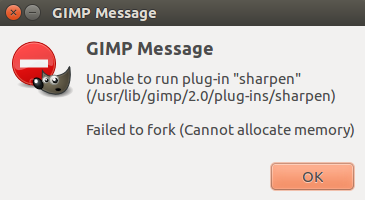

gonna try a bigger source image. hahaha need moar ram
pic.twitter.com/8dx96VtFzW
4 vastausta 1 uudelleentwiittaus 25 tykkäystäNäytä tämä ketju -

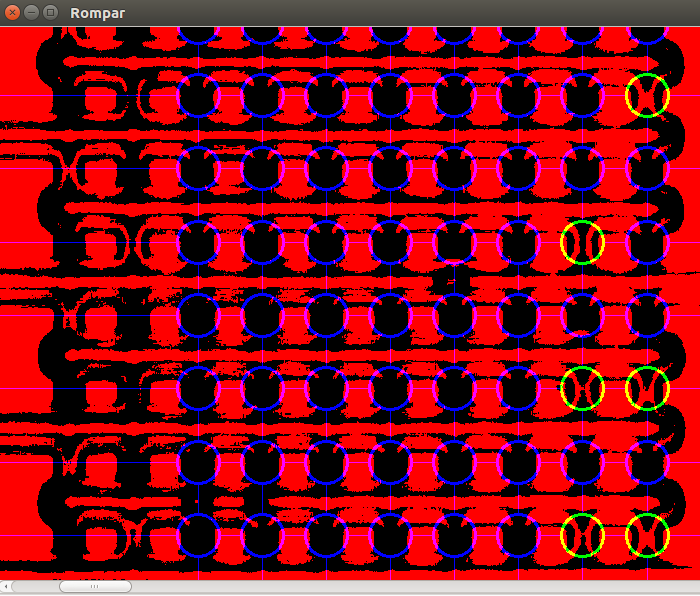

think this'll get me a better read.pic.twitter.com/Cm3T6tr0Au
2 vastausta 1 uudelleentwiittaus 25 tykkäystäNäytä tämä ketju -

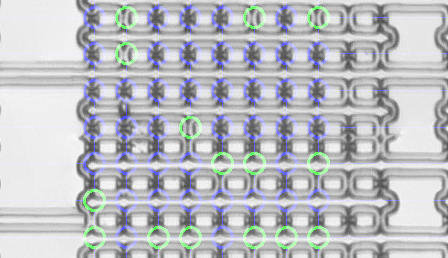

flipping bits. kinda boring. kinda tedious.
pic.twitter.com/DIdQTMstnJ
4 vastausta 1 uudelleentwiittaus 13 tykkäystäNäytä tämä ketju -

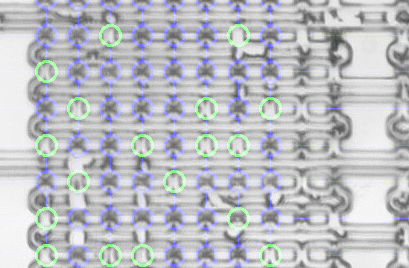

oh no, a stitching error. this is going to be really painful to correct.
pic.twitter.com/fbVYvebAay
3 vastausta 1 uudelleentwiittaus 25 tykkäystäNäytä tämä ketju -
10 vastausta 3 uudelleentwiittausta 86 tykkäystäNäytä tämä ketju
Feel free to hit us at @mamedev_org up once the dump is verified!
