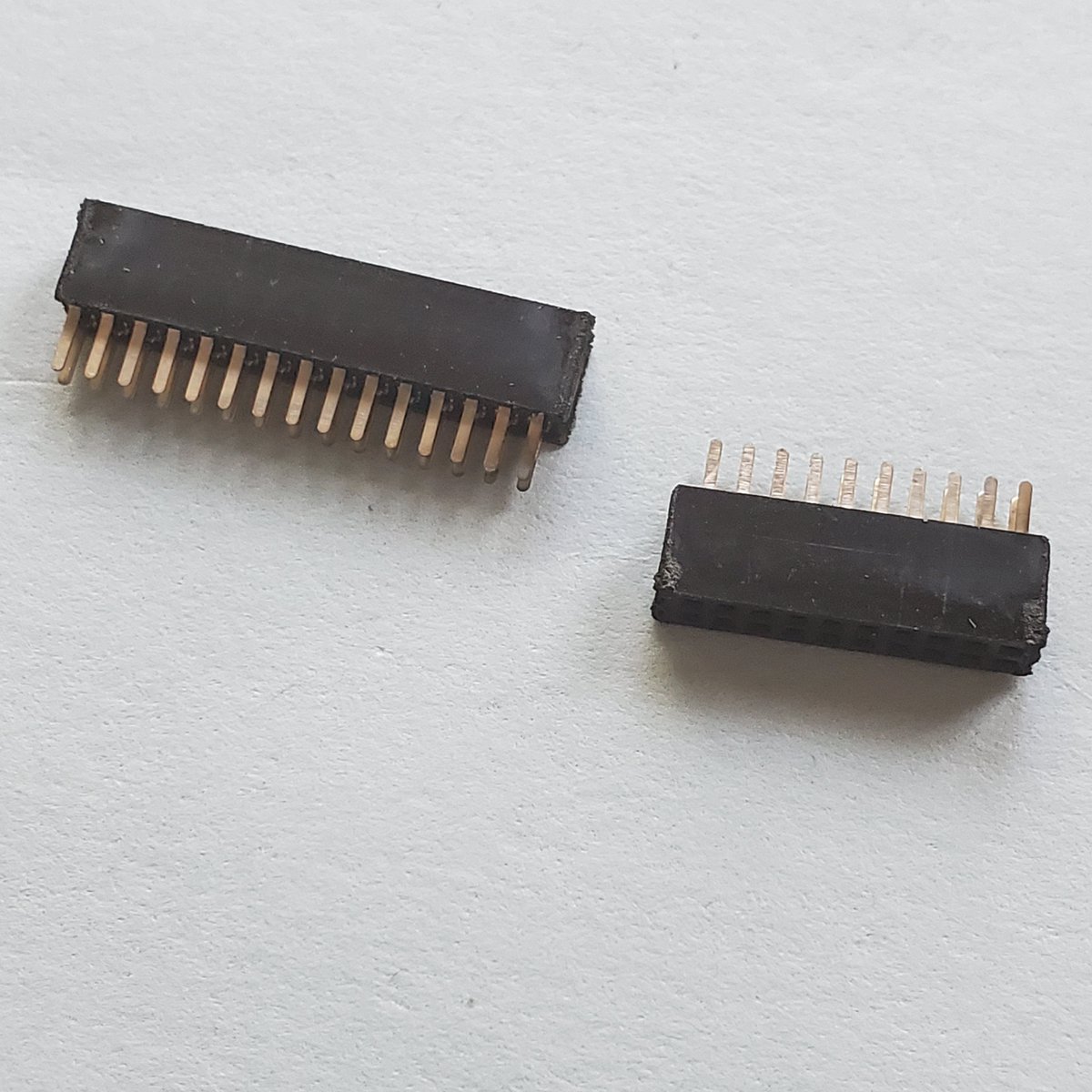

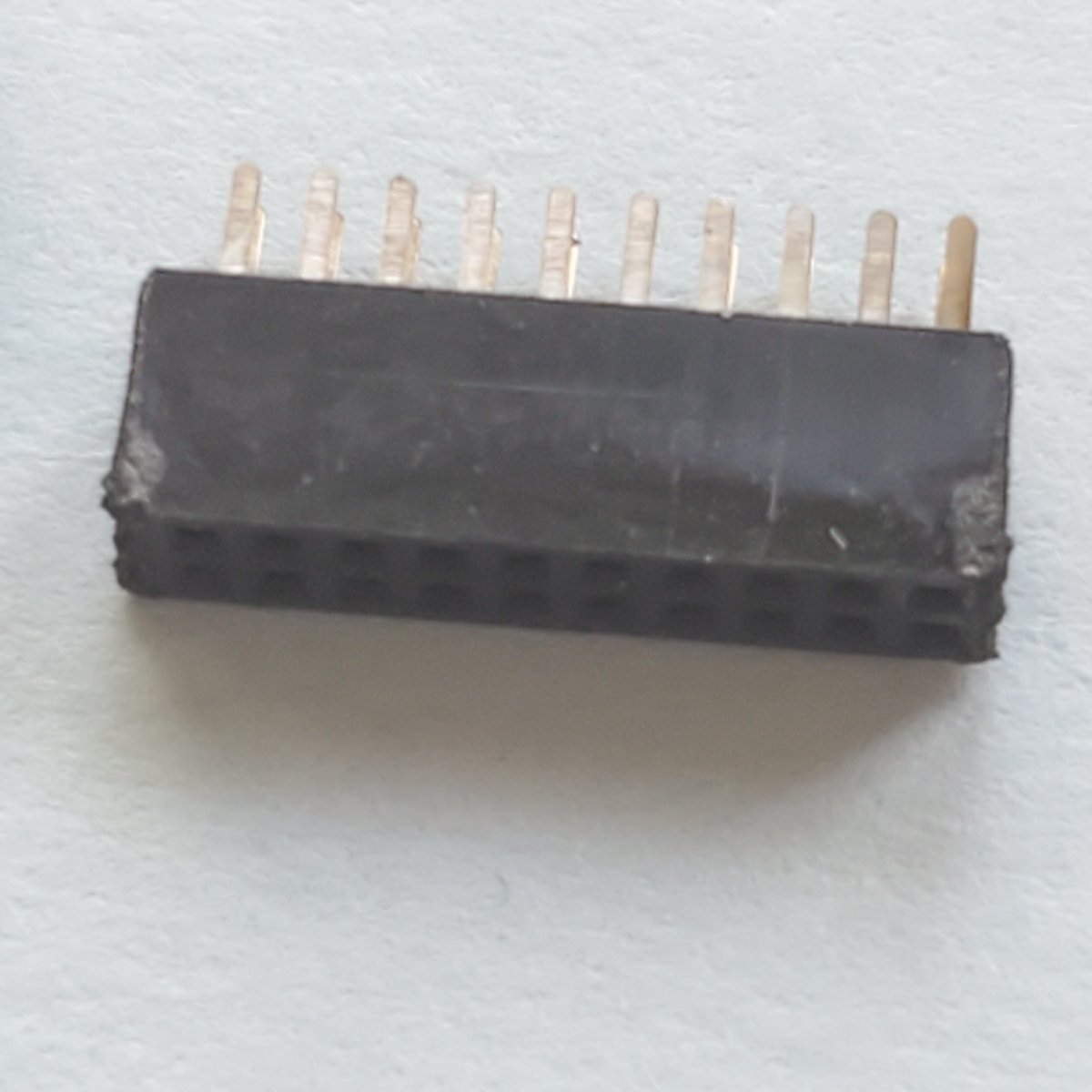

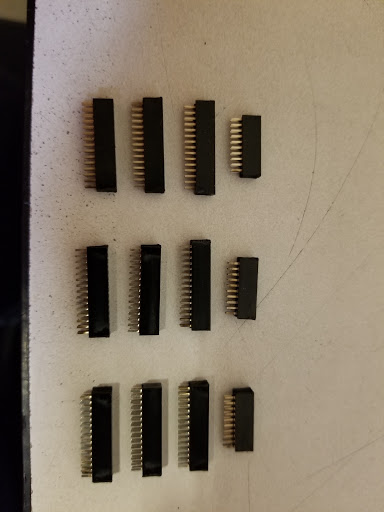

    Hmm, what to do when you designed in 2x15 and 2x10 1.27mm pitch female headers but those lengths were out of stock? Abra, cadbra, presto, changeo, what was once 2x50 is now some 2x15's and 2x10s thanks to the Epilog Laser...

    Poništi
  11. 22. kol 2019.

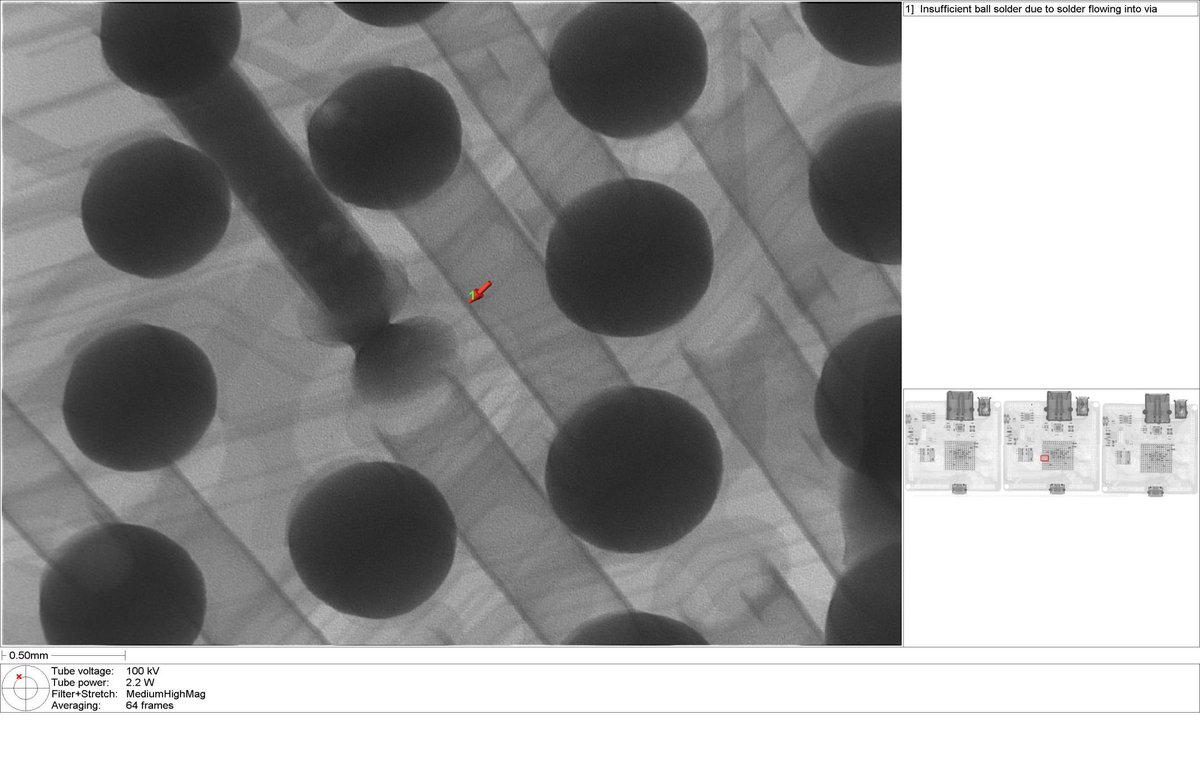

    Finally carved out some time to assemble 3 boards. We decided to roll the dice and just paste and reflow and the results are actually pretty good. 1 or 2 questionable pads but it looks like it'll be OK. You can see the solder going down a few of the 0.2mm vias. Poor Man's ViP !!!

    Prikaži ovu nit
    Poništi
  12. 8. kol 2019.

    PCB Cart's price is ~$183 for 5pcs w/ a 12-day turn and $243 when I click on "Via in pad" option. PCBway is $145 for 4 day turn but when you choose VIP the cost goes to $393 JLCPCB was $39.50 for 10 boards, 4 day build, $17 DHL shipping

    Poništi
  13. 8. kol 2019.

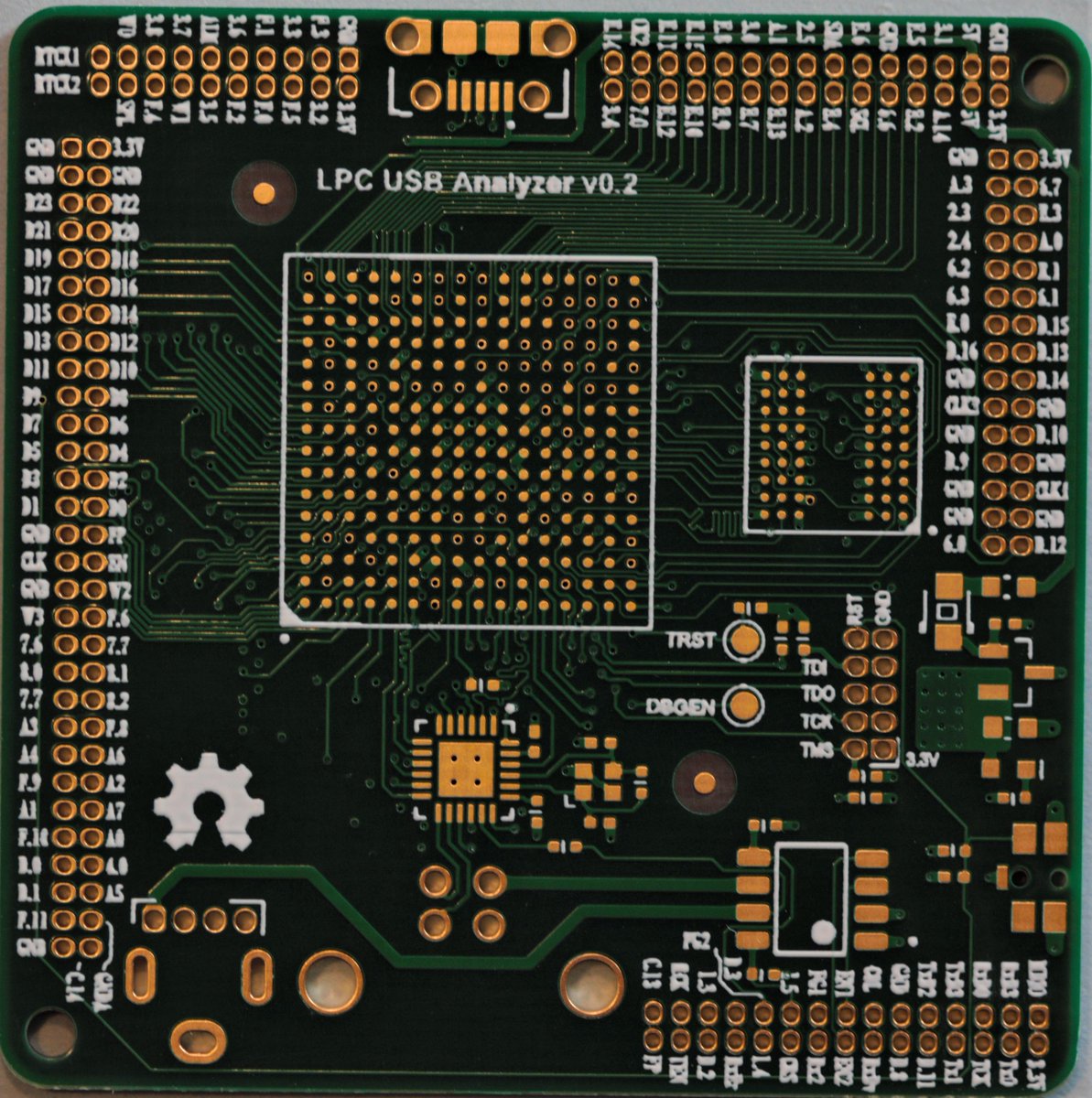

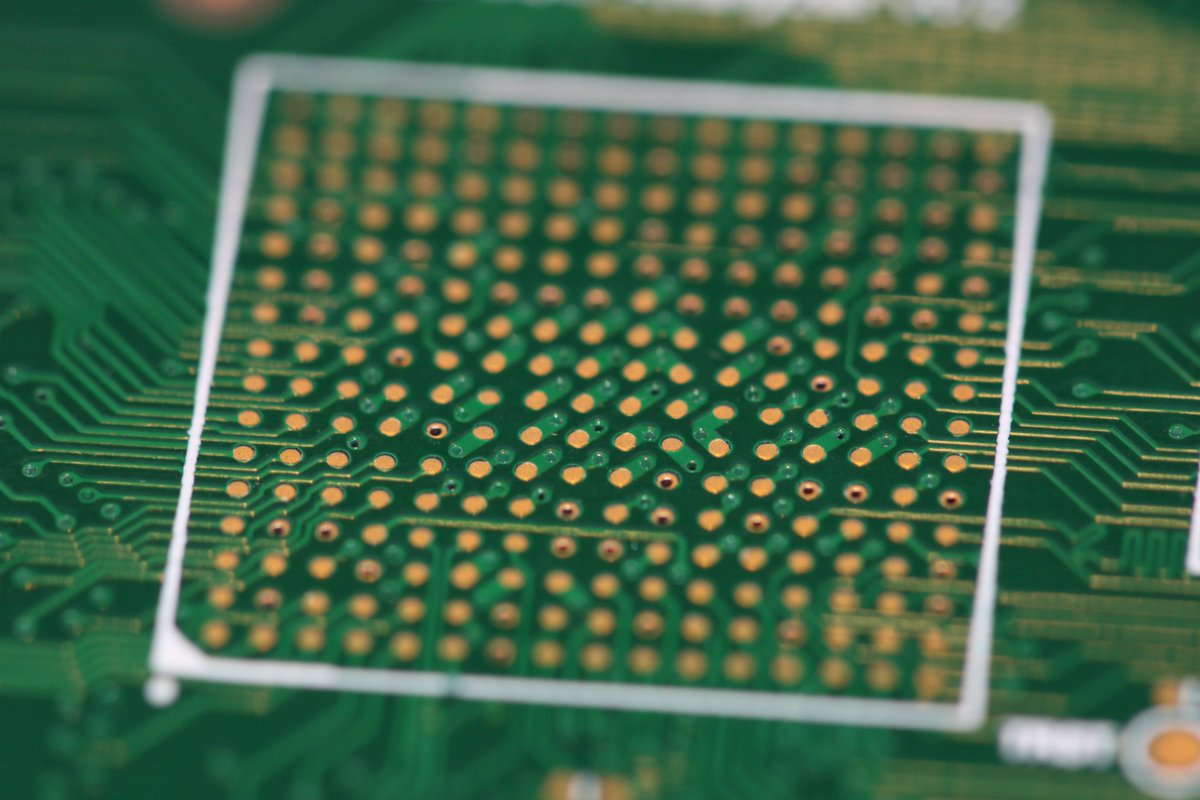

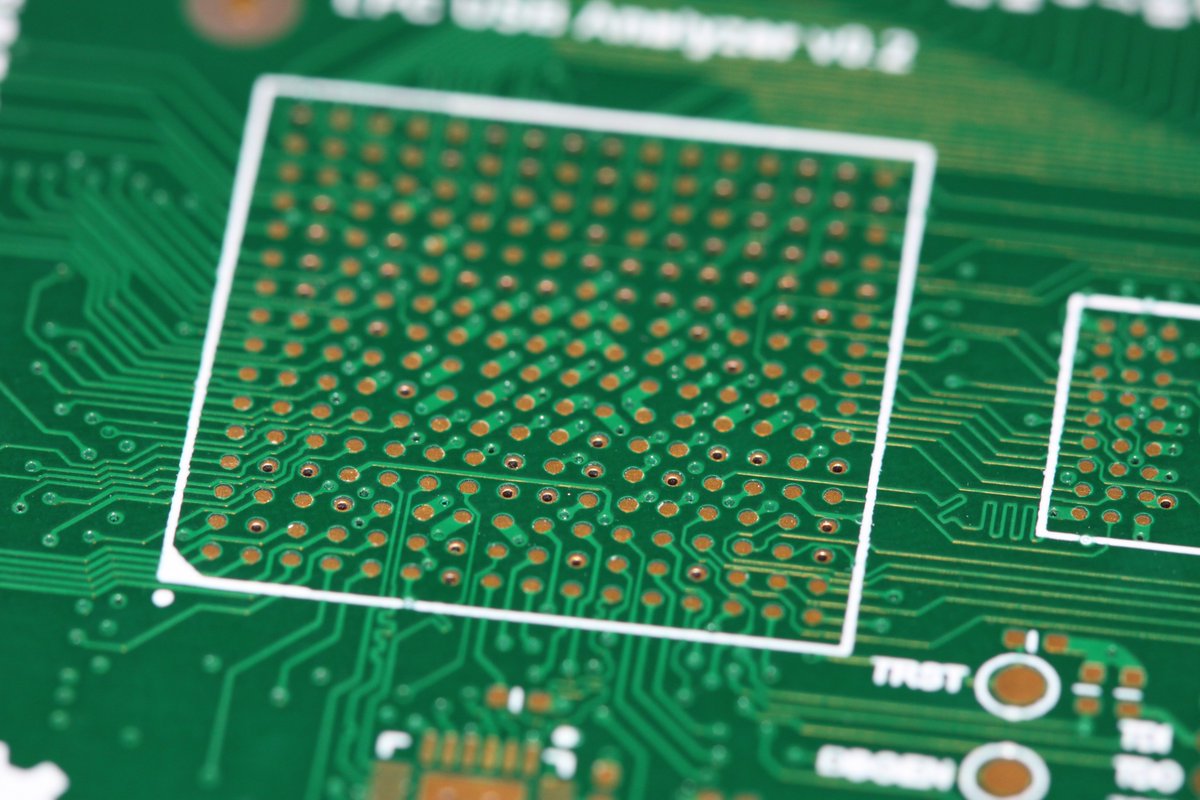

    My photography skills can't hold a candle to but I thought I'd still risk embarrassing myself and sharing some pictures of the low cost USB Analyzer. registration isn't perfect but that's 0.2mm holes in 0.45mm pads. Soldermask is a little off too.

    Prikaži ovu nit
    Poništi
  14. 7. kol 2019.

    Everything has been ordered so I should have the 1st boards built next week. Must be time to start thinking of what to do next!

    Prikaži ovu nit
    Poništi
  15. 29. srp 2019.

    Well I missed my target to release the board last week but I did add boot up jumpers on the bottom and did some additional tweaking. Looks like everything is done so I can release the board tonight or tomorrow

    Prikaži ovu nit
    Poništi
  16. 22. srp 2019.

    Well nothing like adding onto a design that was almost done! I just need to do a final design review and decide on the silk screen but I should be ordering boards this week. The design is also on my GitHub but still in Altium, ATM

    Prikaži ovu nit
    Poništi
  17. 16. srp 2019.

    The problem with walking away and coming back to the layout is I keep changing things, hopefully for the better! Everything is connected now but still needs some TLC and sprinkle in some extras. Then cleanup & decide on what to put on silk screen

    Prikaži ovu nit
    Poništi
  18. 7. srp 2019.

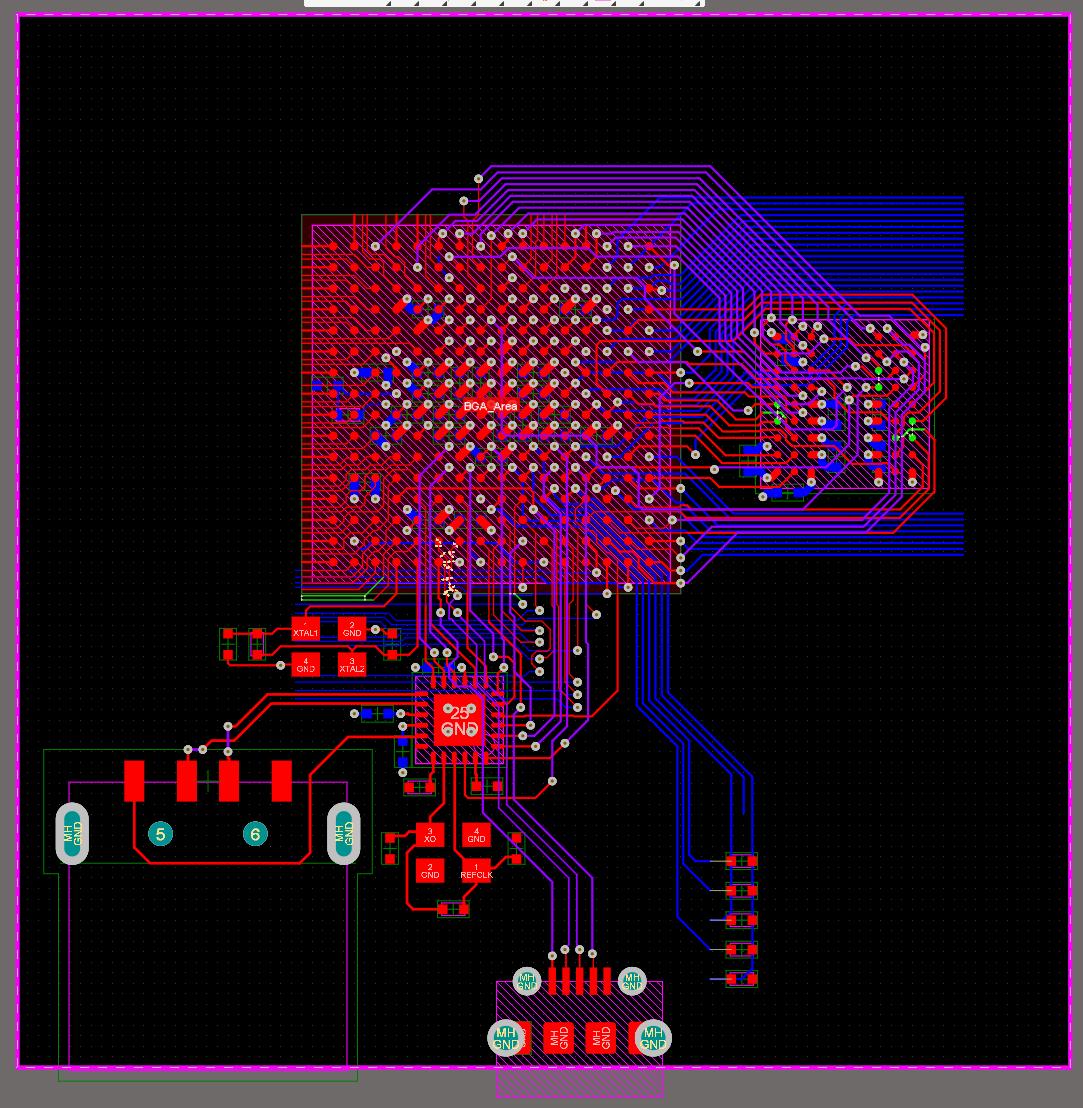

    I've got 139 signals routed out to the board edges now, I think that's all of them. I've placed 2 Hirose 80-pin DF40, 0.4mm pitch connectors on the bottom. Right side is tight, maybe I'll switch to 4 40-pin? I moved the LPC xtal to L4, way from D+/D-

    Prikaži ovu nit
    Poništi
  19. 5. srp 2019.

    Slowly finding the time to make additional progress on this low cost USB analyzer board. Should be less than 50mm^2. Still needs some TLC but it's looking like I can get all of the LPC4357 signals broken out on a 4 layer PCB. LPC4357, 256Mb SDRAM, USB3343

    Prikaži ovu nit
    Poništi
  20. 28. lip 2019.

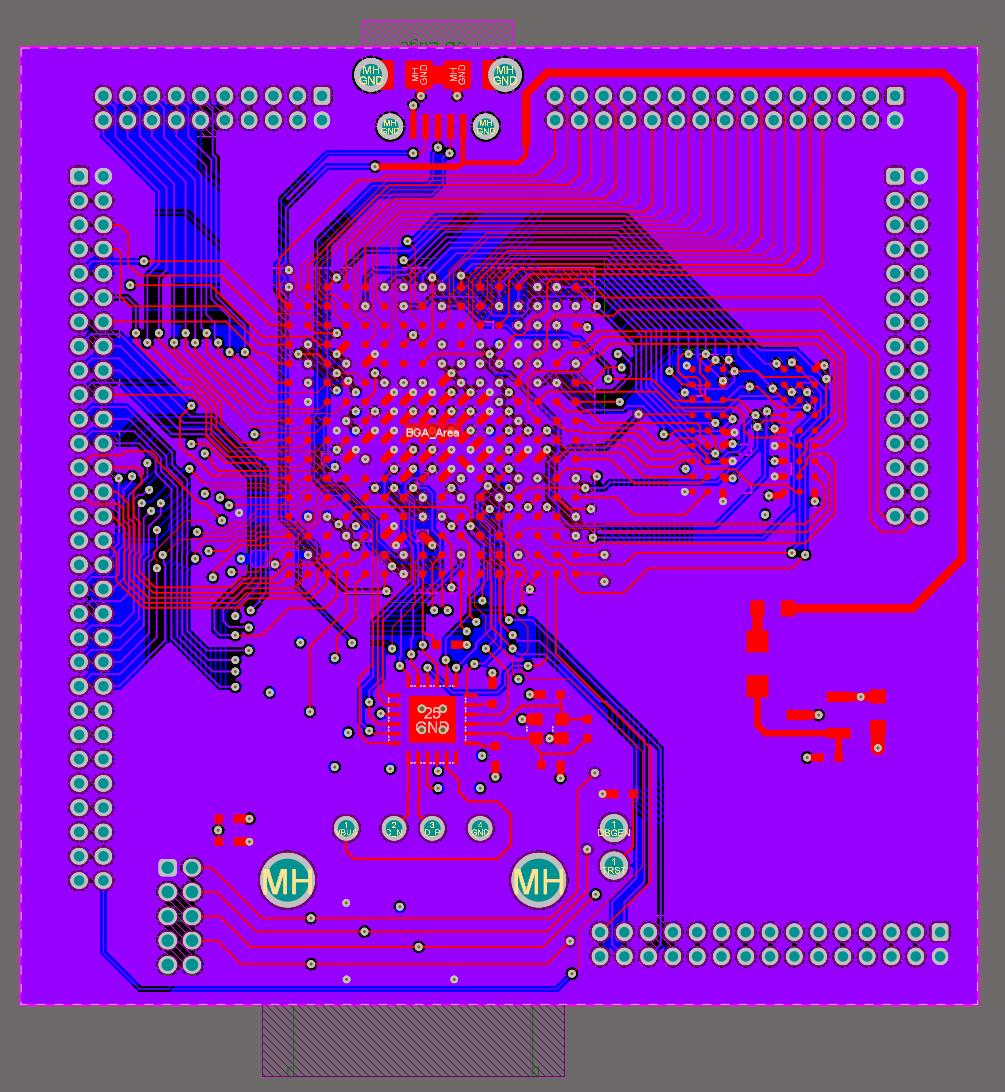

    Blue connections are SDRAM Address signals. What was NXP thinking when they chose what pins on the LPC4357 would be the memory interface pins? All the address are on the "top" while A5-A7 are on the "lower right" (in this view)
